The Xhorse Key Tool MIDI is an all-in-one advanced diagnostic and key programming device combining powerful IMMO and TPMS functionalities. Designed for professional locksmiths and automotive technicians, this device supports over 90% of vehicle models for IMMO programming and over 98% for TPMS sensor services. Featuring a modern touchscreen interface and equipped with cutting-edge functions, the Key Tool MIDI delivers comprehensive remote, transponder, and diagnostic support in one portable unit.

Features:

• IMMO Programming for 90%+ of vehicle models

• TPMS Sensor Services – Generate, program, and clone tire pressure sensors for 98%+ of vehicles

• Programmer Support for 8-pin EEPROM memory

• Transponder Generation & Clone

• Remote Generation & Clone

• Full Vehicle Diagnostics – Read and clear fault codes

• Cloud Diagnostic Mode–C for advanced remote diagnostic support

• IMMO Data Tool for brands like Jaguar, Land Rover, Porsche, Volvo, Mitsubishi, etc.

• 22K Reader/Writer for MLB key wireless recognition

• Support MLB Key Adding (requires MLB-Tool)

• Specialized Design: Tailored for VAG MQB dashboard data reading to ensure accurate and efficient key programming.
• Comprehensive Compatibility: Works seamlessly with KD MAX key programmers ABK-5000 and the KD MATE OBD adapter ABK-5100. Suitable for major brands like VW, Audi, Seat, & Skoda.
• Future-Proof: Regular updates promise the addition of more modules & vehicles, ensuring the longevity of the device.
• User-Friendly Mobile App: Easy to navigate with clear instructions, the KeyDiy prog App provides essential wiring diagrams and procedures.
• Complete Kit: Comes with all the necessary components to get started, from the KD Mini Prog device to the quality certificate.

KEYDIY KD Prog Mini Functions:

• Read & Write MQB instrument cluster File with KD Prog Mini
• Calculate Anti-Theft Data for MQB
• Data repair for MQB instrument cluster
• Mileage repair for MQB instrument cluster

What is the KEYDIY Prog Mini C2 Adapter used for?

The KD Mini Prog C2 special adapter is a special component required for interfacing with various RH850 MQB dashboards. This adapter expands the device's capability to read and write data for a wide range of MQB instrument clusters, including multiple RH850 models such as:

• VAG MQB RH850 D70F3525 instrument cluster
• VAG MQB RH850 D70F3526 instrument cluster
• VAG MQB RH850 D70F3529 instrument cluster
• VAG MQB RH850 D70F3532 instrument cluster
• VAG MQB RH850 D70F3537 instrument cluster
• VAG MQB RH850 D70F3535 instrument cluster
• VAG MQB RH850 D70F3426 instrument cluster
• VAG MQB RH850 47F701401 instrument cluster
• VAG MQB RH850 47F701402 instrument cluster
• VAG MQB RH850 47F701404 instrument cluster
• VAG MQB RH850 47F701406 instrument cluster
• VAG MQB RH850 47F701407 instrument cluster
• and more will be added soon...

How to Use the KD Mini Prog:

1. Weld the cable harness to the corresponding instrument position according to the diagram available in the Mobile KD app.
2. Connect the KD Mini Prog wires, then link the KeyDiy Prog programming device with the KeyDiy KD Max programmer ABK-5000 or a compatible Android device.
3. Launch the Mobile KD app and navigate to Immo Programming > KD Mini Prog to initiate MQB dashboard data reading.
4. Ensure your KD-MAX or phone has sufficient power to guarantee successful reading.
5. Once dashboard data is successfully read, begin key programming with the KD-Max Key programmer ABK-5000.

How to Activate the KEYDIY KD Mini Prog

Activating the KD Mini Prog is an easy process. You can activate the device using your KEYDIY Max programmer for 5000 KD-Coin. These coins can be earned by generating KD remotes and KD smart keys. If your KD Max programmer doesn't have enough KD-Coin, You can Purchase the KD Mini Prog Activation using your KD Mobile App.

Remember, the activation of your KD Mini Prog is essential to be able to use it with your KD Max Programmer to unlock its full capabilities and ensure smooth operation in your key programming tasks.

KD Mini Prog Box Contains:

• KEYDIY KD Prog Mini programming device
• KD Mini Prog Special cable harness
• KD Mini Prog C2 special adapter
• KD Mini Prog Adapter plate
• KD Mini Prog 0TG cable
• KD Mini Prog Quality certificate

Product Description

GODIAG GT107+ DSG Plus Gearbox Data Adapter with inbuild CAN Resistor:

• GODIAG GT107+ DSG plus gearbox data adapter is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data for DSG gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.

• This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose "Manual". For other software kessv2, DQ200, DQ250, DQ500, you can also choose "Manual".

• Moreover, with the car battery power, the adapter can directly read and write DSG gearbox data and you can clearly check the communication status during the data reading and writing process.

GODIAG GT107+ DSG Plus Features:

1. The adapter is suitable for connecting VAG series gearbox ECUs, supporting gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW...

2. Voltage display: the user can know the current operating voltage of the gearbox ECU. If there is a short circuit or wrong wiring, the voltage will drop severely, which can be used to judge the problem.

The next generation of CG-100, can perform automatic conversion BMW, Mercedes-Benz kilometer and BMW, Land Rover, Porsche key matching. With new CAS4 DB25 in package, reading CAS4 without de-soldering (No Need to Remove Chip).

Features

• Read and write any BMW CAS 1-4, Porsche BCM, Mercedes-Benz EIS, Audi BCM2 etc. anti-theft computer (100% stable security)

• Able to crack a variety of strong encryption chips, stable and fast.

• Equipment uses high-end technology, real-time monitoring, anti-loss system.

• Support 80% of the 35160WT, 35080, 35128 in the market.

• Language: English, paid extra for Spanish, French, German, Turkish and Chinese.

• With free new CAS4 DB25 in package, reading CAS4 without soldering (No Need to Remove Chip)

Highlights:

1. By working together with Godiag GT100, CGDI BMW & CG Pro, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.
2. Before installing back the CAS4 /CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate or there is any malfunction.
3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access).
4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key. When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.

GODIAG for BMW CAS4 /CAS4+ Programming Test Platform Display:

• DB25 female connector(used to connect the male port of GODIAG GT100 / GODIAG OBD2).
• Ignition simulated start switch.
• Immobilizer dashboard simulated indicator.
• Key sensing area.
• Screw bolt.
• Godiag OEM dedicated CAS4 CAS4+ power adapter or CAN Communication adapter.
• Godiag OEM dedicated CAS4 CAS4+ start control adapter.

GODIAG BMW FEM/BDC Test Platform

GODIAG BMW FEM/BDC Test Platform Highlights:

1. Provide locksmiths with the easy and convenient connection for FEM/BDC immobilizer system.
2. Perform the synchronization test for the programmed FEM / BDC and the key
3. Provide a test environment for the engineers who professionally recycle FEM/BDC.
4. Help automobile maintenance engineers check whether the FEM/BDC and the key are synchronized correctly.
5. Provide professional engineers with connecting FEM BDC modules and instrument.

Programming Device AutokeyUnlocker PCF79Xx

Make electronics repair and soldering simple with this powerful and reliable hot air rework station. The 858D is perfect for beginners, hobbyists, and DIY enthusiasts who need a dependable hot air soldering station that’s easy to use for SMD (surface mount device) components and other small electronic projects.

• Output Power: 700W – heats up quickly for fast, efficient work.
• Temperature Range: Adjustable from 100 ℃ to 450 ℃ for use on delicate components or heavy-duty jobs.
• Air Flow: Max. 120L/min, powered by a gentle, brushless fan for smooth, even air delivery.
• Low Noise: Operates at less than 45dB for a quiet workspace.
• LED Digital Display: See the current temperature and settings clearly at a glance.

Autel Key Programmer MaxiIM IM608 PRO

The most advanced key programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android-based 10.1-inch touchscreen tablet.

Autel key programmer MaxiIM IM608 Pro includes:

• MaxiIM IM608 Tablet
• XP400 Pro Key Programmer
• MaxiFlash ECU Reprogrammer
• Carry Case
• Cables, cords, and adapters

Autel G BOX2 - Mercedes Benz & BMW Adapter For Autel Key Programmer IM508 / IM608

The Autel G-BOX2 is an adapter compatible with the Autel Key Programmer IM508 (with Purchase of XP400 programmer) and IM608 Key Programming tablets used to aide in the programming keys for Mercedes DAS3 CAN EIS/EXS in an ALL Keys Lost situation.

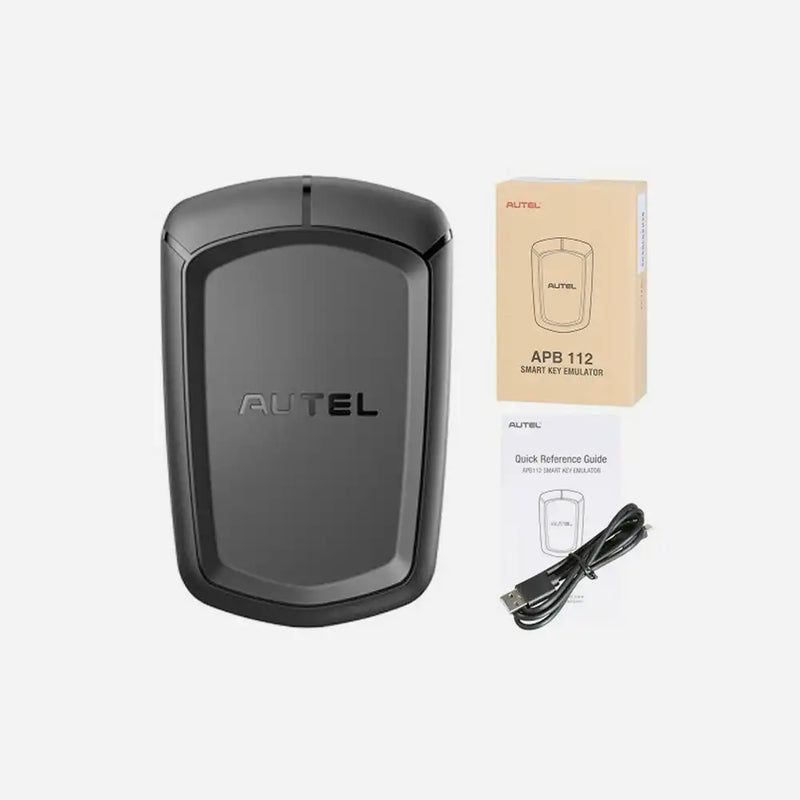

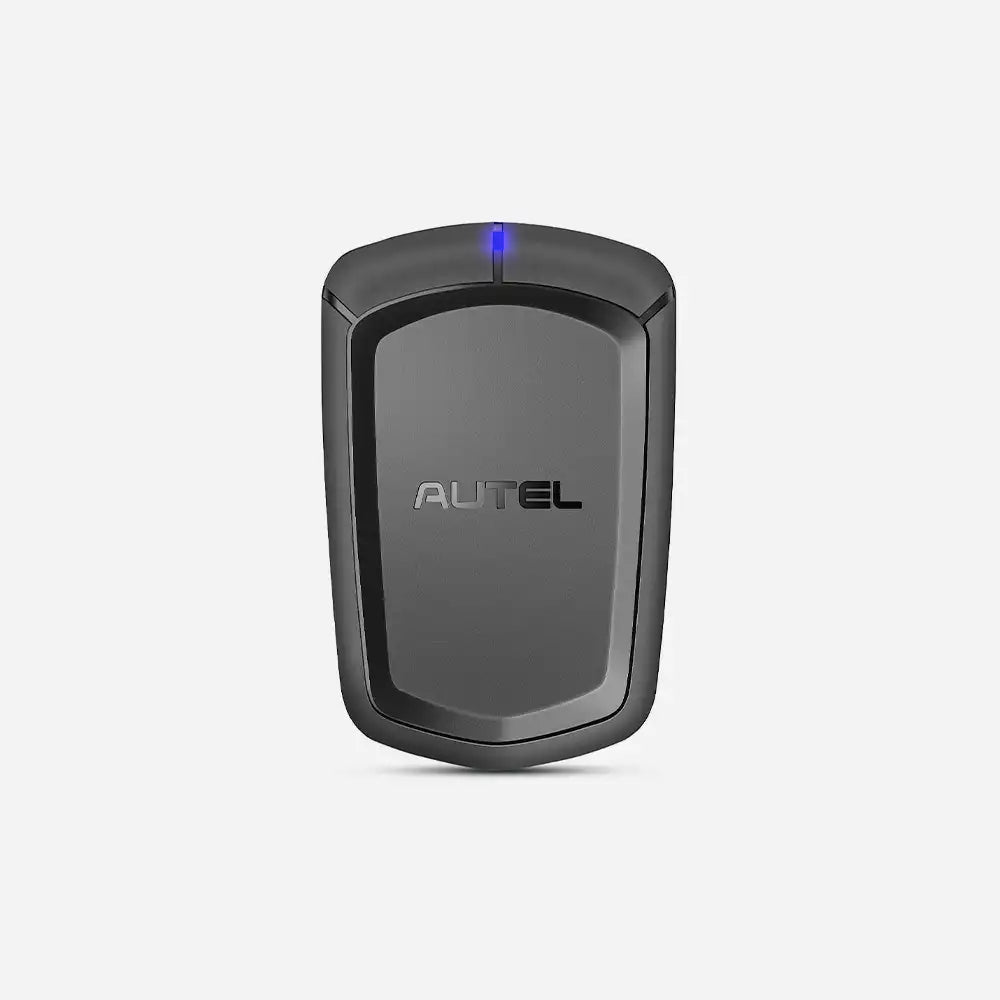

Autel APB112 Smart Key Simulator for Autel Key Programmer

The APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip. Currently, it supports to simulate the 4D type chip. More key chip types will be supported with future upgrades.

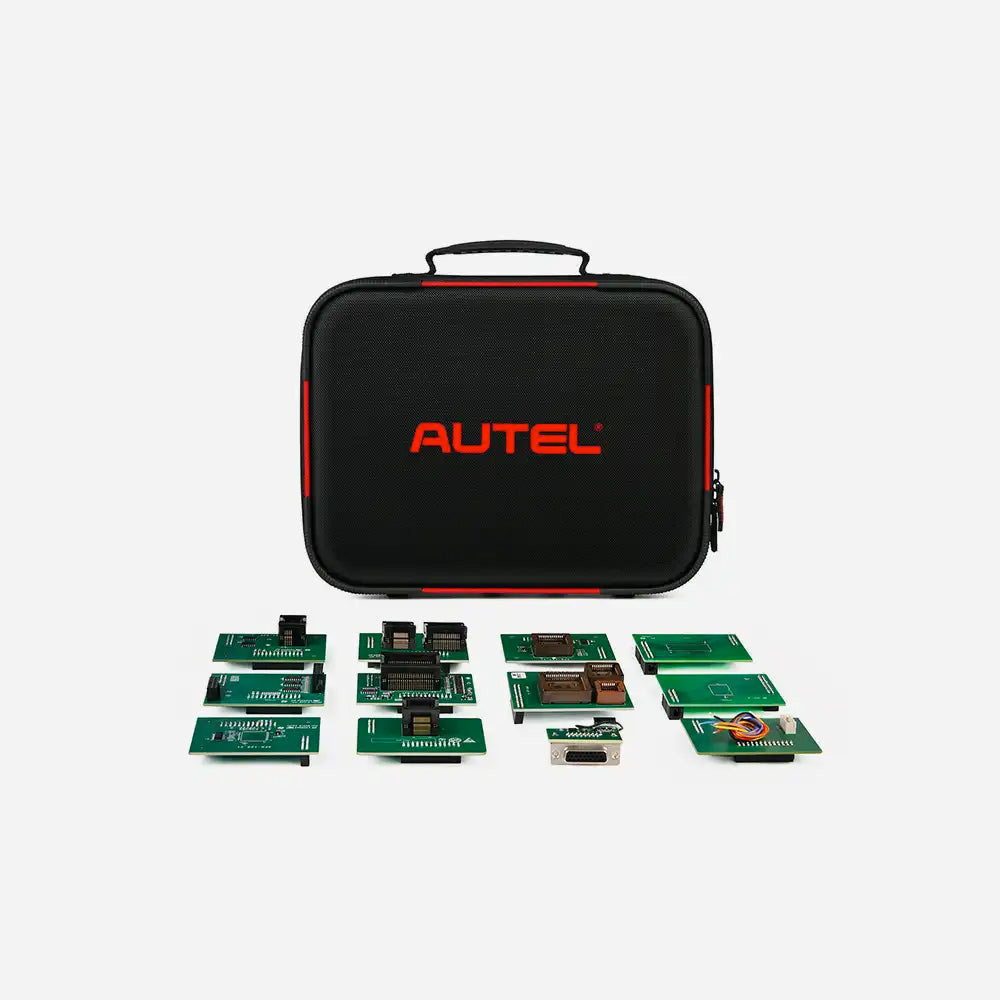

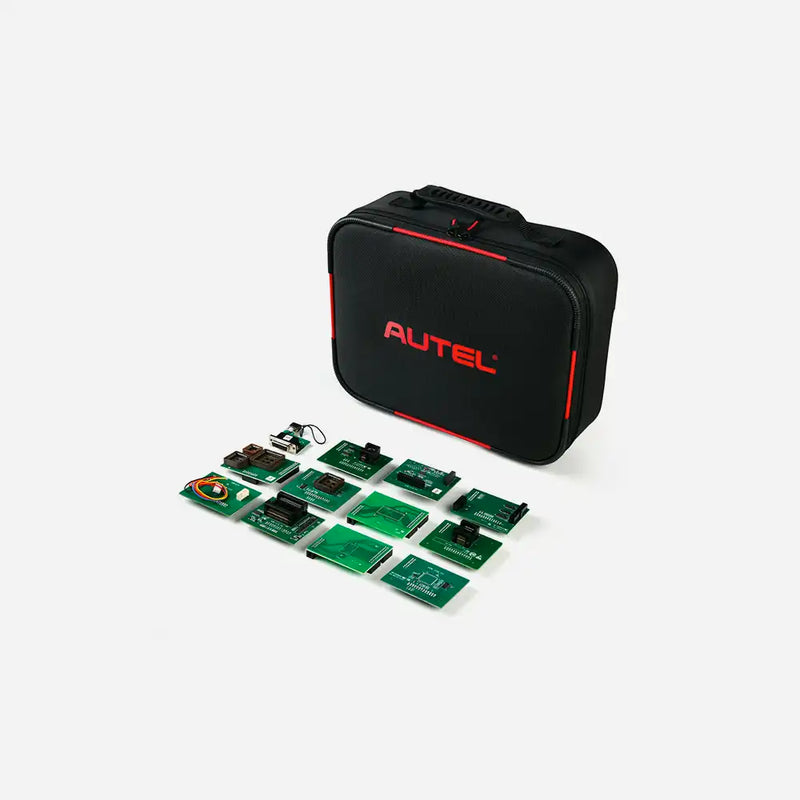

Autel - MaxiIM IMKPA

• Supports over 10 key unlock types
• BMW EWS3 key learning
• Benz NEC key learning
• Benz ESL_W209 read/write/erase
• Compatible with IM508 and IM608 Autel key programmers
• (XP400Pro required)
• Includes 1-Year Warranty

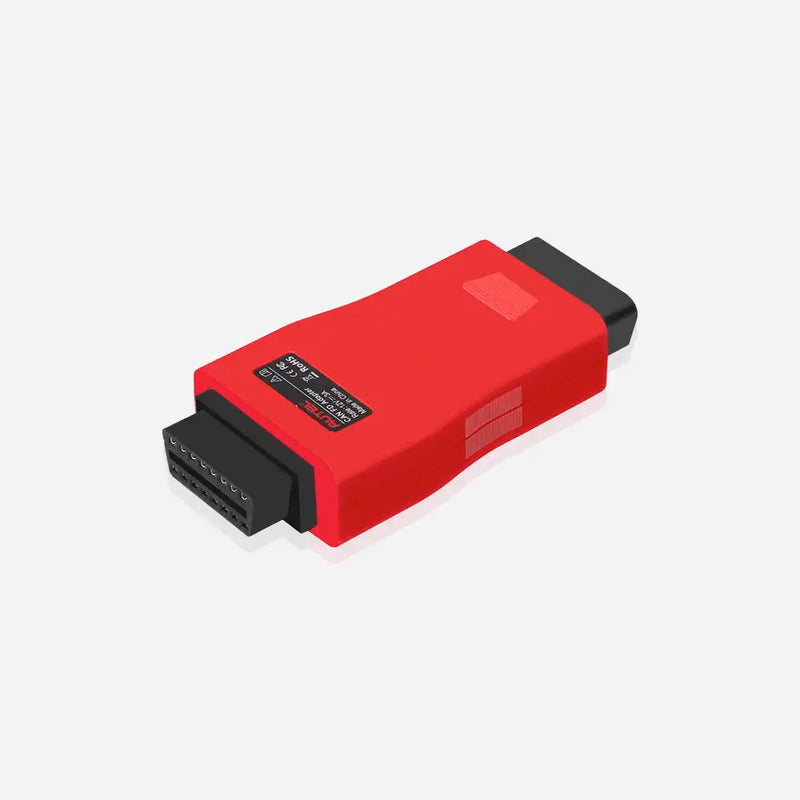

Autel - CAN FD Adapter for General Motors, Ford 2019 and 2020 vehicles

Enables diagnostics of vehicles using the CAN FD (CAN Flexible Data-Rate) protocol used on newer GM and Ford vehicles.

• Compatible with VCI or VCI/J2534 device included with Gen 1 Autel MaxiSys units: MX808, MS905, MS906, MS906BT, MS906TS, MS908, MS908P, MSELITE
• Compatible with VCI/J2534 device included with the Gen 2 Autel MaxiSys units: MaxiADAS, MS908S, MS908SP, IM508, IM608
• One-year limited warranty

16+32 NISSAN SECURE GATEWAY ADAPTOR CABLE

• Compatible with Nissan Sentra 2020 and newer models
• Compatible with Autel MaxiSYS diagnostic and MaxiIM IMMO tablets
• Enables Read/Erase of all available system modules
• Enables bi-directional active tests and maintenance tasks
• Supports add key for IM tools, IMMO part replacement, IMMO status scan
• OE-style connection for secure connection with no back probe necessary
• Enables Viewing and graphing of Live Data

Autel Nissan 16+32 Secure Gateway Adaptor for IM608 Pro and IM508

The KeyMaster G3 USA STD

From OBDStar is an intelligent, Android-based programming device designed specifically for immobilizer work on U.S. market vehicles. With a focus on IMMO functionality, OBDII diagnostics, EEPROM/MCU programming, and smart key operations, the USA STD version delivers essential capabilities for locksmiths and automotive technicians — without the added complexity or cost of ECU flashing or cluster calibration.

IMMO:

• Support for Volkswagen MQB key programming with free synchronization code calculation
• Proximity key programming for the latest Toyota models
• All-keys-lost programming for:
  • Nissan Rogue, Sentra, and more
  • Ford vehicles from 2021 onward
• PIN code reading support for Hyundai/Kia ID6A and related systems
• BMW motorcycle OBD key programming for ID8A, ID4D, and ID46 transponders

Package Includes:

• KeyMaster G3 USA STD Main Unit
• OBDII Diagnostic Cable
• Power Supply & USB Cable
• Quick Start Guide
• Carrying Case

GODIAG For BMW BDC3/BCP

GODIAG for BMW BDC3/BCP Programming Test Platform streamlines immobilizer system management, key synchronization, and module diagnostics with unmatched reliability. All these powerful functions make it the ultimate all-in-one solution for professional engineers. GODIAG for BMW BDC3/BCP Programming Test Platform is your gateway to faster, safer, and more efficient diagnostics. Whether you're working on key synchronization, module programming, or instrument maintenance, this platform has got you covered.

 Test Platform Functions:

1. Used to detect whether the key and module are synchronized.
2. After the key and module are synchronized, the corresponding immo indicator light will light up and there will be a sound prompt.
3. The module off-vehicle diagnostic programming and coding are convenient for engineers to operate and can avoid the risk of other modules of the car being damaged.
4. The key sensor identification light is convenient for detecting the key and module identification.
5. The instrument lights up for instrument detection and maintenance.
6. Key remote control function and module synchronization test.
7. It supports ENET communication and can perform diagnostics, programming and coding on the BDC3 module.
8. It supports CAN BUS module communication and can perform diagnostics and programming on the BDC3 module.
9. Use Autel IM608 device and Autel BDC3 key with Autel BDC3 key addition authorization to add keys to the BDC3 module.
10. Connect to BMW dedicated diagnostic equipment icom, GT109 for ENET communication.
11. Connect to Autel, Launch tablets that supports BMW diagnostics for diagnostics, programming, and other functions.
12. Key intelligent recognition test, check whether the intelligent synchronization function of the BDC3 module is normal.

  Product Functions:

OBDSTAR P003+ Kit Supported ECU List:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

1. Continental PCR2.1(TC1796)

2010-2014 Audi A1 (8X) 1.6L Diesel

2009-2012 Audi A3 (8P) 1.6L Diesel

2009-2013 Seat Altea 1.6L Diesel

2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

2010-2012 Seat Leon II 1.6L Diesel

2014 Seat Toledo (KG) 1.6L Diesel

2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

2010-2013 Skoda Fabia II (5J) 1.6L Diesel

2010-2011 Skoda Roomster (5J) 1.6L Diesel

2013-2014 Skoda Rapid (NH) 1.6L Diesel

2011-2013 Skoda Superb (3T) 1.6L Diesel

2012/2015 Skoda Yeti (5L) 1.6L Diesel

2010-2015 VW Caddy (2K) 1.6L Diesel

2009-2013 VW Golf VI 1.6L Diesel

2010-2013 VW Golf Plus 1.6L Diesel

2011-2014 VW New Beetle (9C) 1.6L Diesel

2011 VW Passat (B7) 1.6L Diesel

2009-2014 VW Polo V 1.6L Diesel

2010-2015 VW Touran (1T) 1.6L Diesel

2. Bosch MED17.4.4(TC1793)

Citroen C3 Mk2

Citroen C4 Gran Picasso

Citroen C4 MK2

Citroen C5 (RD/TD)

Citroen C6

DS DS3

DS DS5

DS DS6

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 3008 (T84)

Peugeot 308 (T9)

Peugeot 4008

Peugeot 408

Peugeot 508

3. Bosch EDC17C60(TC1793)

Citroen Berlingo

Citroen C-Elysee

Citroen C3 Aircross

Citroen C3 MK2

Citroen C3 Picasso

Citroen C4 Cactus

Citroen C4 MK2

Citroen C4 Picasso

Citroen Jumpy

Citroen Spacetourer

DS DS3

DS DS4

DS DS5

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 308 (T9)

Peugeot 5008 (T87-P87)

Peugeot 508

Peugeot Expert

Peugeot Ranch/Partner

Peugeot Traveller

Opel/Saturn/Vauxhall Combo E

Opel/Saturn/Vauxhall Crossland X

Opel/Saturn/Vauxhall Grandland X

ToyotaProace

4. Bosch MD1CS018

Mahindra BS-6

5. Bosch MED17XX/EDC17XX

EDC17U01(TC1766)

EDC17C46(TC1767)

EDC17C54(TC1797)

EDC17C64(TC1797)

EDC17CP44(TC1797)

EDC17CP44 MS(TC1797)

MED17.5(TC1766)

MED17.5.1(TC1766)

MED17.5.20(TC1766)

MED17.5.5(TC1766)

MED17.5.5 HW2(TC1766)

MED17.5.2(TC1767)

MED17.5.5(TC1767)

MED17.5.5 HW2(TC1767)

MED17.5.21(TC1782)

MED17.5.25(TC1782)

MED17.1.1(TC1797)

MED17.1.1 MS(TC1797)

MED17.1.6(TC1797)

VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bosch ME17XX

ME17.5.6(TC1767)

ME17.5.20(TC1767)

ME17.1.1(TC1797)

ME17.1.6(TC1797)

VW/Audi/Skoda/Seat, Bentley...

OBDSTAR P003 Kit Functions

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003+ KIT
2. Bosch MED17.4.4 reading eeprom , PinCodeP003+ KIT
3. Bosch EDC17C60 reading eeprom , PinCodeP003+ KIT
4. Bosch MD1CS018 reading eeprom, PinCodeP003+ KIT
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash

Product Functions:

Support VW IMMO IV NEC24C64 and NEC24C32 AKL.

Without removing IC, soldering PCB and making server data

Read IMMO data by BENCH

I/O Terminal Advantages

Combination of K-line and CAN interfaces provides ideal software compatibility without acquiring an expensive J2534 device

Reading and flashing of FLASH and EEPROM memory image using the diagnostic connector link.

Checksums testing and correction. Safe reading and flashing.

The software is marketed on a module basis. Each module is a separate program which functions independently with one joint adapter. You can download and use only the software you have licenses on. Licenses are stored on special cards which are to be inserted in the special adapter slot before the software use. Some license can be recorded on one card, others require separate recording.
