The X100-PAD by Xtool is a professional-grade automotive diagnostic tool designed to read ECU information, troubleshoot vehicle issues, and provide real-time data. It supports a wide range of diagnostic functions, including reading and clearing trouble codes, as well as viewing live data streams from various vehicle control systems. It not only provides customers with professional key programming, but also the most needed special functions for workshop. X-100 PAD is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis.

Overview:
The OBDSTAR RH850/V850 Adapter Full Kit is a professional solution for advanced key programming, airbag reset, immobilizer (IMMO) data reading, and pincode retrieval. Designed for automotive locksmiths and ECU specialists, it supports a wide range of RH850 and V850 processor-based systems, including Volkswagen MQB, Ford/Lincoln, Nissan/Renault, FCA, and more.

Key Functions:

1. Volkswagen MQB48-5A Key Programming (Components Removing Free)

• Supports dashboard, ECM, and TCM data reading & IMMO data decryption via BENCH/BOOT
• Compatible with MQB48-5A systems (MQB49-5C in development)
• All Keys Lost (AKL) synchronization code calculation for BLADE & PROXIMITY keys
• ELV IMMO data acquisition via MP001 + RH850/V850 adapter

2. Ford/Lincoln 2021+ Key Programming (Including AKL)

• Supports models such as F-150, Bronco, Navigator, Mustang Mach-E, Explorer, and more

3. Nissan/Renault Key Programming (Including AKL)

• Supports Nissan Sentra, Rogue, Pathfinder, Juke, Qashqai, and more

4. FCA Key Programming (Upcoming Upgrade)

• Fiat 500E, Alfa Romeo Tonale, Jeep Renegade, Dodge Hornet, and others

5. Airbag Reset

• Read, write, and clear crash data for a wide range of brands: Subaru, Toyota, Lexus, Volvo, Mazda, Jaguar, Tesla, Ford, GM, Honda, Hyundai, Kia, VW, and more

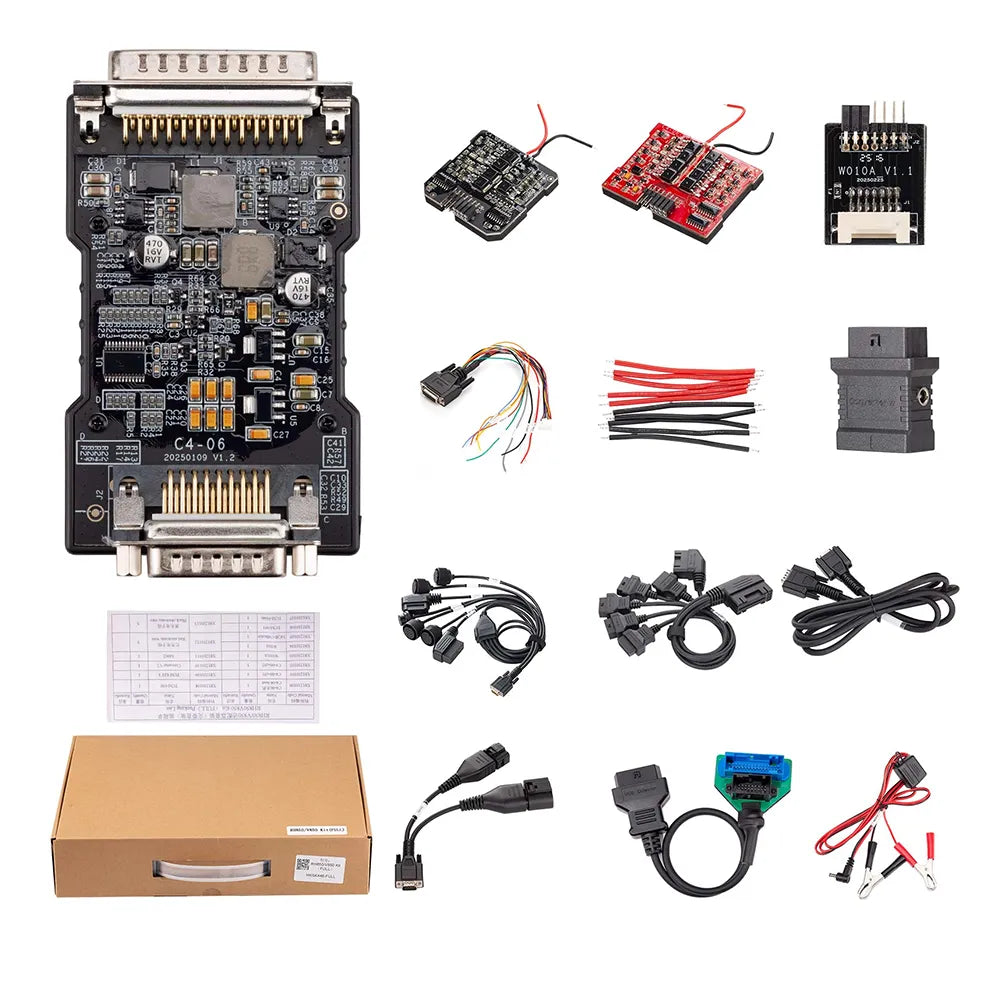

Package Includes:

• RH850/V850 Adapter Board (C4-06)
• MCU Boards (C4-06-C01, C4-06-C02)
• W010 & W010A Cables
• Dedicated Decryption Jumpers (5 sets)
• MQB Collector
• ECM-001 Module
• M002 Cable Set
• TCM-MAIN Cable
• Converter V2
• TCM-030 Cable
• Optional TCM-KIT 1 / TCM-001 / TCM-002 / TCM-005 (sold separately)

Supported Tools:

• KeyMaster G3 (Recommended)
• Requires MP001 multifunction programmer for use

The Xhorse Key Tool MIDI is an all-in-one advanced diagnostic and key programming device combining powerful IMMO and TPMS functionalities. Designed for professional locksmiths and automotive technicians, this device supports over 90% of vehicle models for IMMO programming and over 98% for TPMS sensor services. Featuring a modern touchscreen interface and equipped with cutting-edge functions, the Key Tool MIDI delivers comprehensive remote, transponder, and diagnostic support in one portable unit.

Features:

• IMMO Programming for 90%+ of vehicle models

• TPMS Sensor Services – Generate, program, and clone tire pressure sensors for 98%+ of vehicles

• Programmer Support for 8-pin EEPROM memory

• Transponder Generation & Clone

• Remote Generation & Clone

• Full Vehicle Diagnostics – Read and clear fault codes

• Cloud Diagnostic Mode–C for advanced remote diagnostic support

• IMMO Data Tool for brands like Jaguar, Land Rover, Porsche, Volvo, Mitsubishi, etc.

• 22K Reader/Writer for MLB key wireless recognition

• Support MLB Key Adding (requires MLB-Tool)

Xhorse Replacement Battery for Xhorse Condor Dolphin XP-005 and XP-005L Automatic Key Cutting Machine.

Features:

Color: silver

Weight: 850 g

Input voltage: DC25.2V - 2550mAh 64.26Wh

MPN: XP0510EN

OBDSTAR P003+ Kit Supported ECU List:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

1. Continental PCR2.1(TC1796)

2010-2014 Audi A1 (8X) 1.6L Diesel

2009-2012 Audi A3 (8P) 1.6L Diesel

2009-2013 Seat Altea 1.6L Diesel

2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

2010-2012 Seat Leon II 1.6L Diesel

2014 Seat Toledo (KG) 1.6L Diesel

2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

2010-2013 Skoda Fabia II (5J) 1.6L Diesel

2010-2011 Skoda Roomster (5J) 1.6L Diesel

2013-2014 Skoda Rapid (NH) 1.6L Diesel

2011-2013 Skoda Superb (3T) 1.6L Diesel

2012/2015 Skoda Yeti (5L) 1.6L Diesel

2010-2015 VW Caddy (2K) 1.6L Diesel

2009-2013 VW Golf VI 1.6L Diesel

2010-2013 VW Golf Plus 1.6L Diesel

2011-2014 VW New Beetle (9C) 1.6L Diesel

2011 VW Passat (B7) 1.6L Diesel

2009-2014 VW Polo V 1.6L Diesel

2010-2015 VW Touran (1T) 1.6L Diesel

2. Bosch MED17.4.4(TC1793)

Citroen C3 Mk2

Citroen C4 Gran Picasso

Citroen C4 MK2

Citroen C5 (RD/TD)

Citroen C6

DS DS3

DS DS5

DS DS6

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 3008 (T84)

Peugeot 308 (T9)

Peugeot 4008

Peugeot 408

Peugeot 508

3. Bosch EDC17C60(TC1793)

Citroen Berlingo

Citroen C-Elysee

Citroen C3 Aircross

Citroen C3 MK2

Citroen C3 Picasso

Citroen C4 Cactus

Citroen C4 MK2

Citroen C4 Picasso

Citroen Jumpy

Citroen Spacetourer

DS DS3

DS DS4

DS DS5

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 308 (T9)

Peugeot 5008 (T87-P87)

Peugeot 508

Peugeot Expert

Peugeot Ranch/Partner

Peugeot Traveller

Opel/Saturn/Vauxhall Combo E

Opel/Saturn/Vauxhall Crossland X

Opel/Saturn/Vauxhall Grandland X

ToyotaProace

4. Bosch MD1CS018

Mahindra BS-6

5. Bosch MED17XX/EDC17XX

EDC17U01(TC1766)

EDC17C46(TC1767)

EDC17C54(TC1797)

EDC17C64(TC1797)

EDC17CP44(TC1797)

EDC17CP44 MS(TC1797)

MED17.5(TC1766)

MED17.5.1(TC1766)

MED17.5.20(TC1766)

MED17.5.5(TC1766)

MED17.5.5 HW2(TC1766)

MED17.5.2(TC1767)

MED17.5.5(TC1767)

MED17.5.5 HW2(TC1767)

MED17.5.21(TC1782)

MED17.5.25(TC1782)

MED17.1.1(TC1797)

MED17.1.1 MS(TC1797)

MED17.1.6(TC1797)

VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bosch ME17XX

ME17.5.6(TC1767)

ME17.5.20(TC1767)

ME17.1.1(TC1797)

ME17.1.6(TC1797)

VW/Audi/Skoda/Seat, Bentley...

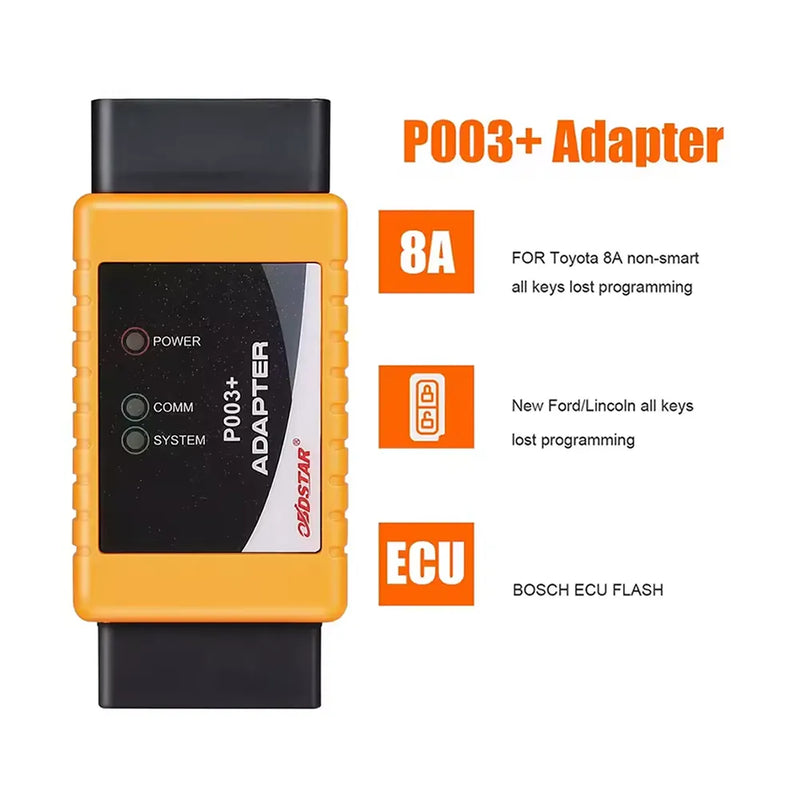

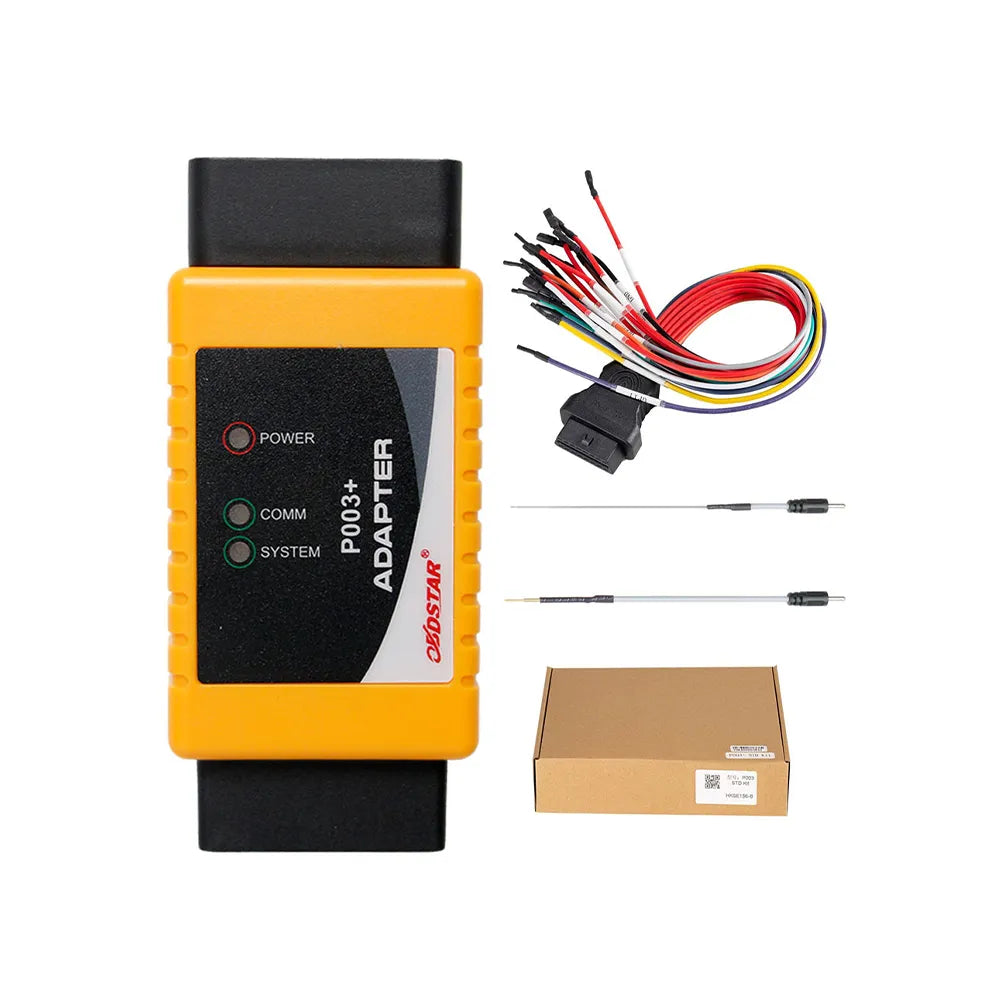

OBDSTAR P003 Kit Functions

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003+ KIT
2. Bosch MED17.4.4 reading eeprom , PinCodeP003+ KIT
3. Bosch EDC17C60 reading eeprom , PinCodeP003+ KIT
4. Bosch MD1CS018 reading eeprom, PinCodeP003+ KIT
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash

Product Functions:

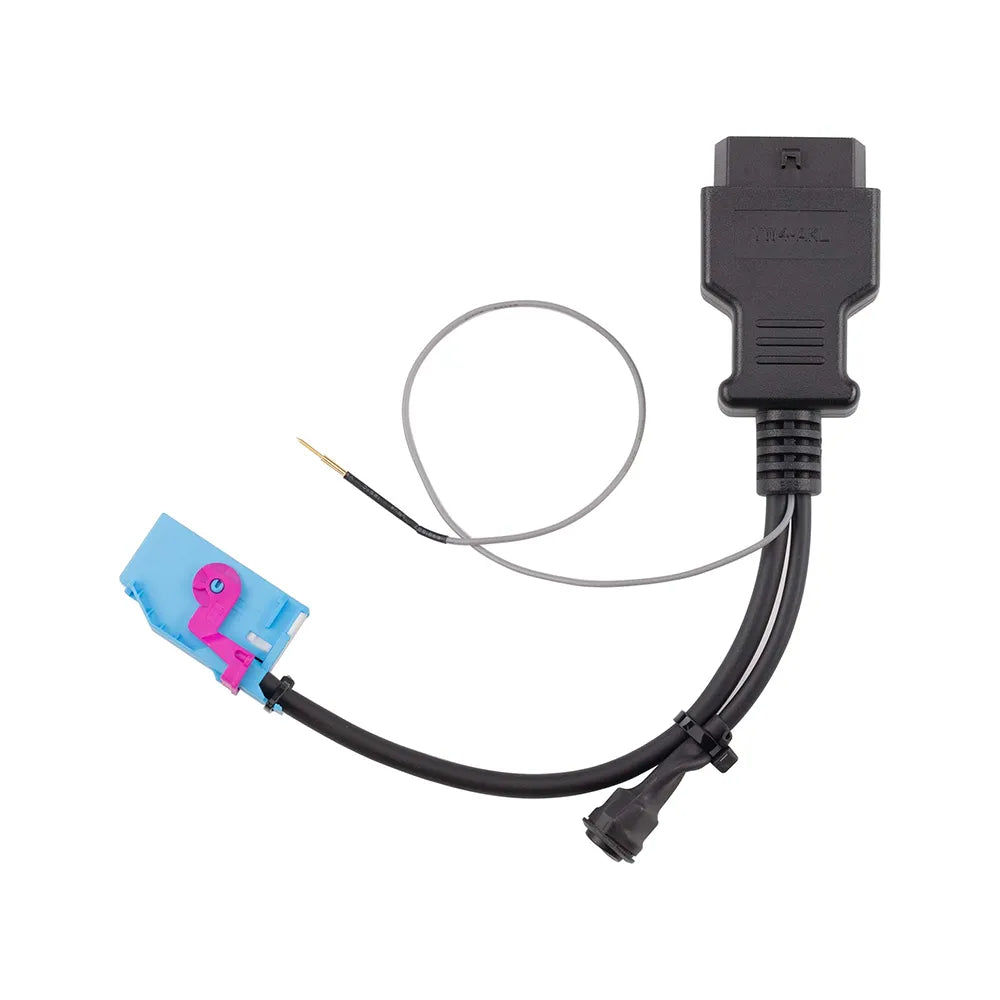

Support VW IMMO IV NEC24C64 and NEC24C32 AKL.

Without removing IC, soldering PCB and making server data

Read IMMO data by BENCH

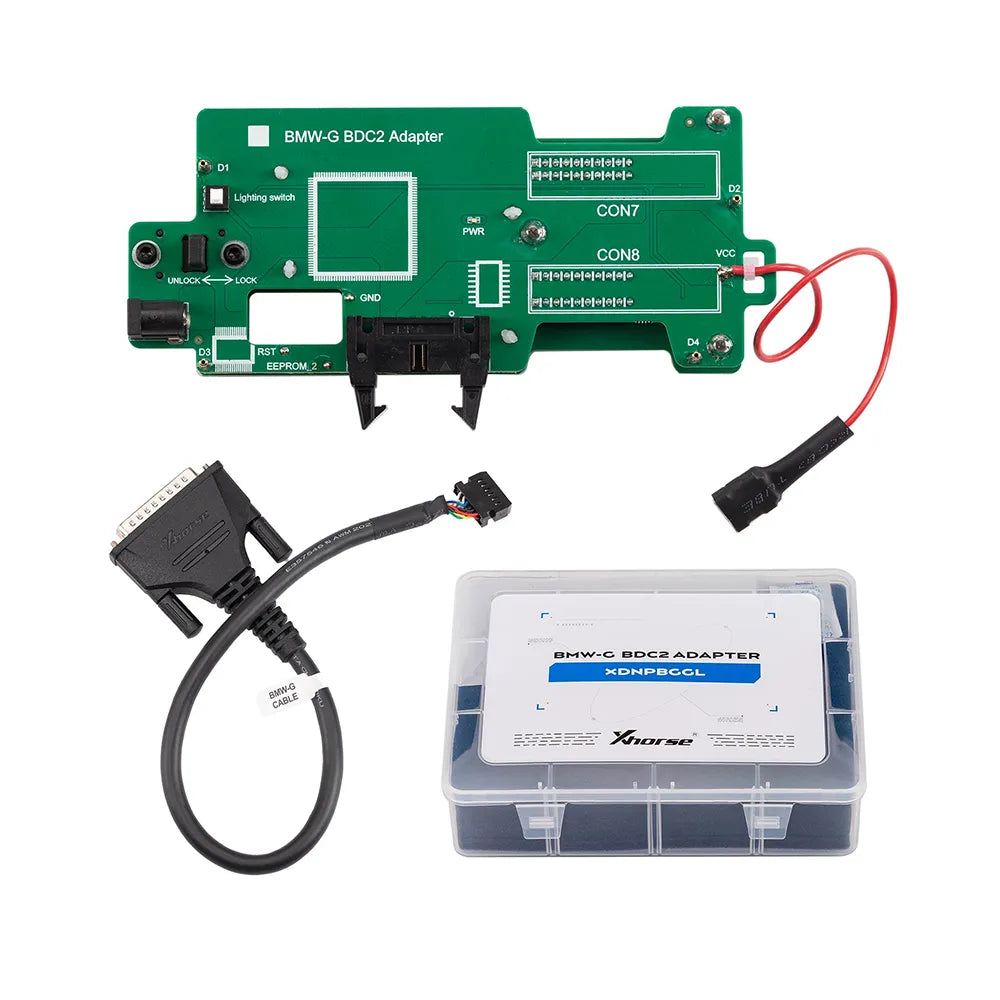

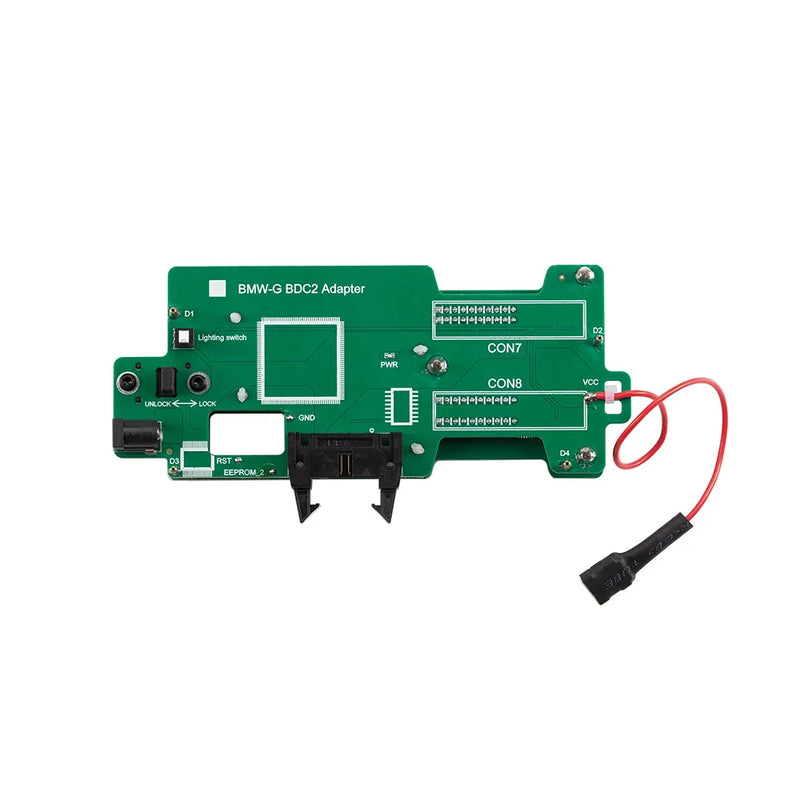

Enough stocks BMW-G BDC2 Adapter (Part number: XDNPBGGL).

Function:
BMW G series BDC2 add key on bench.
*Cannot do all keys lost and mileage reset yet.

Compatible with VVDI2, key tool plus and key tool midi (enhanced version only).

Important Notes!!

1.Free BMW G-chassis-BDC2 and BDC3/BCP immo system activation is included with the purchase of an adapter now.

2. After you receive the BDC2 adapter, then pls inform us the serial number to activate freely. (one adapter can activate one Xhorse tool license)


Vehicle List:

5 Series    G30    2016.11–2020.06
5 Series    G31    2017.03–2020.06
5 Series    G38    2017.05–2020.08
6 Series    G32    2017.07–2020.06
7 Series    G11/G12    2015.07–2019.02
X3    F97    2019.04–2021.07
X3/iX3    G08    2018.05–2021.08
X3    G01    2017.12–2021.07
X4    G02    2018.04–2021.07
X4    F98    2019.04–2021.07
M5    F90    2017.11–2020.06
Rolls-Royce 2018-

OBDSTAR C4-07 (MB-VGS4-0-NAG2)

C4-07 MB-VGS4-0-NAG2 adapter kit is specifically designed for drilling access to the FBS4 7G-Tronic VGS4-0-NAG2 Transmission Control Module (TCM), supports solder-free virginizing of used TCM via JTAG mode, supports personalization (data transfer) via BENCH or OBD mode, achieving the same effect as ECU clone. This eliminates the requirement for automotive electronics technicians to have advanced soldering skills, making it a powerful tool for professionals in the field.

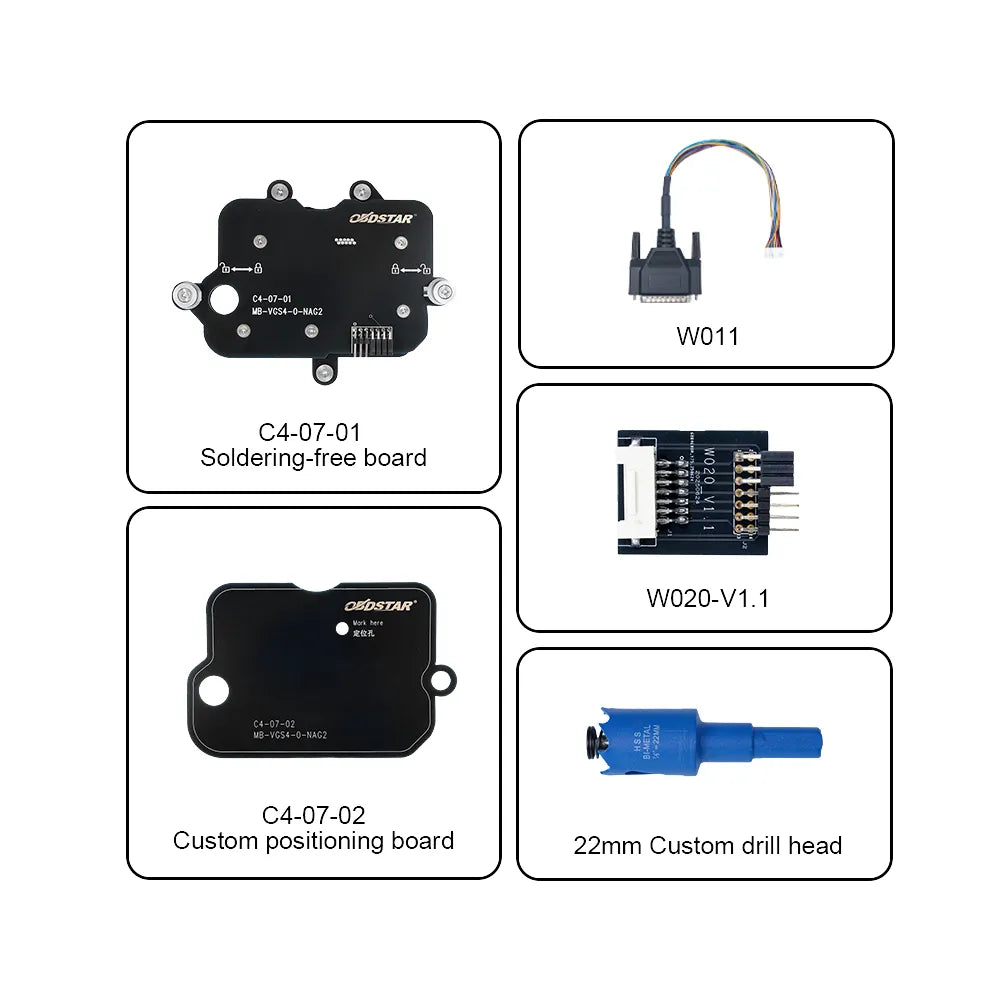

MB-VGS4-0-NAG2 Adapter Kit

1. C4-07-01 Soldering-free board

2. C4-07-02 Custom positioning board

3. W011

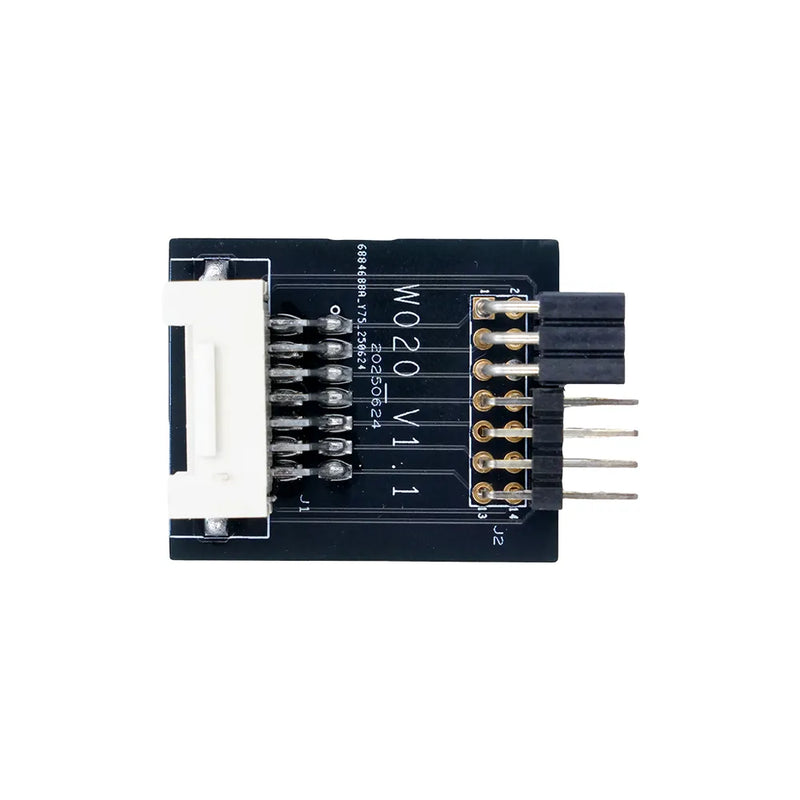

4. W020-V1.1

5. 22mm Custom drill head

6. TCM-012 (optional)

7. Converter V2 (optional)

Note:

1. Need to be used with MP001 multifunctional programmer;

2. All of the above accessories are required to perform the function.
If you already have the TCM-012 and Converter V2, you do not need to purchase them again.

Support Functions:

1. Support all vehicles with VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation Mercedes-Benz;

2. Support solder-free virginizing of used TCM via JTAG mode;

3. Support personalization (data transfer) via BENCH or OBD mode, achieving the same effect as TCM clone.

 Advanced Functions:

1. Custom positioning board for precise and secure drilling access to the control unit;

2. Used together with the custom drill head and a handheld drill, the TCM can be easily opened with minimal exterior damage;

3. High-precision custom board enabling safe, solder-free read/write operations—ensuring reliable data access and operational safety.

Support Tools

Use with OBDSTAR KeyMaster G3, DC706, etc.

Feature:

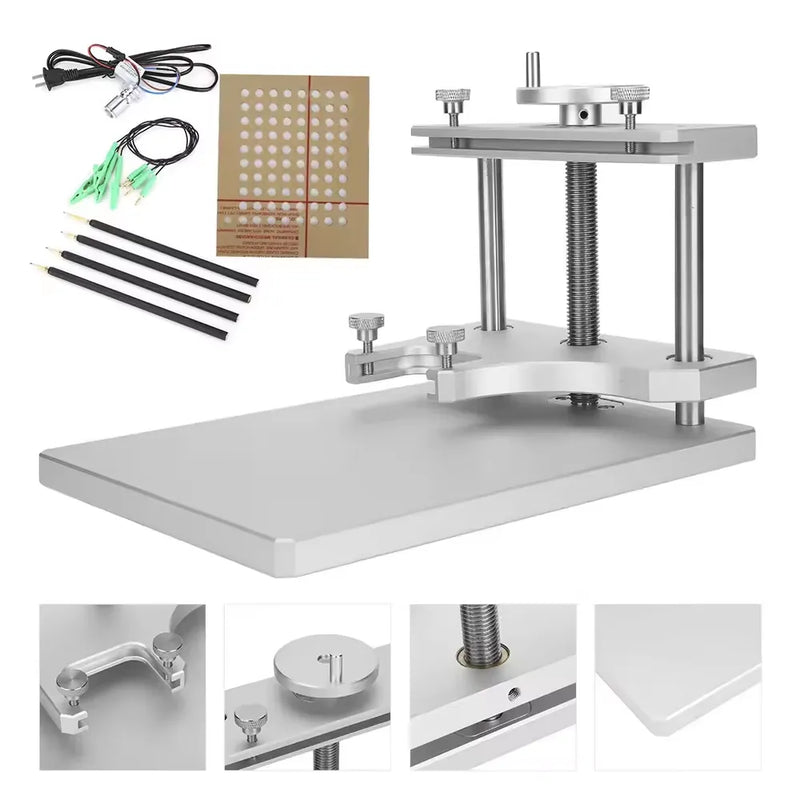

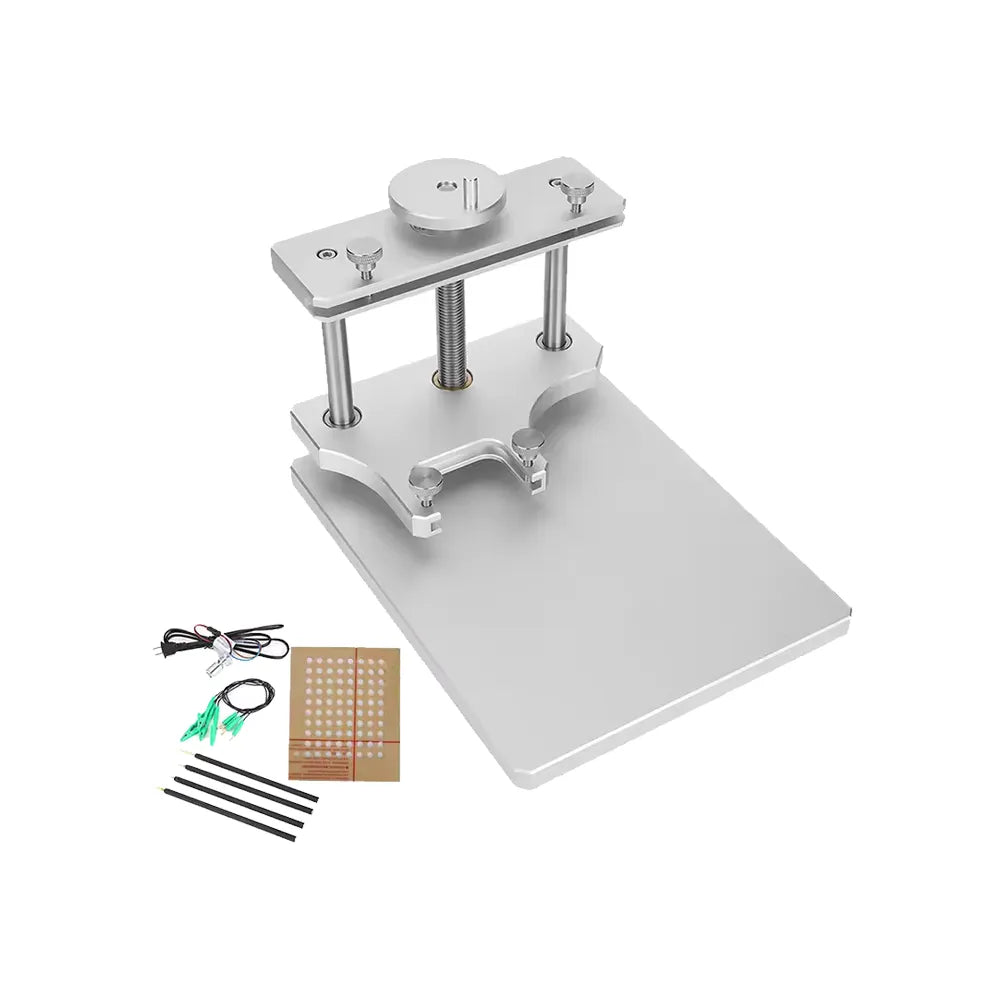

1. LED BDM frame full set, it consists of a acrylic board, Mesh and 4 Probe pens, etc.

2. LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work. The probe pin is adjustable.

3. Best bracket for ECU update/ECU brush and write/ECM modified and programming/probe holder/for Dimsport aids.

4. It works with for KESS/KTAG/FGTECH/BDM100/100/CMD/DIMSPORT AIDS and othe ECU chip tuning tools.

5. Simple designed, easy to use, much better than the old BDM frame.

Specifications:

Features:

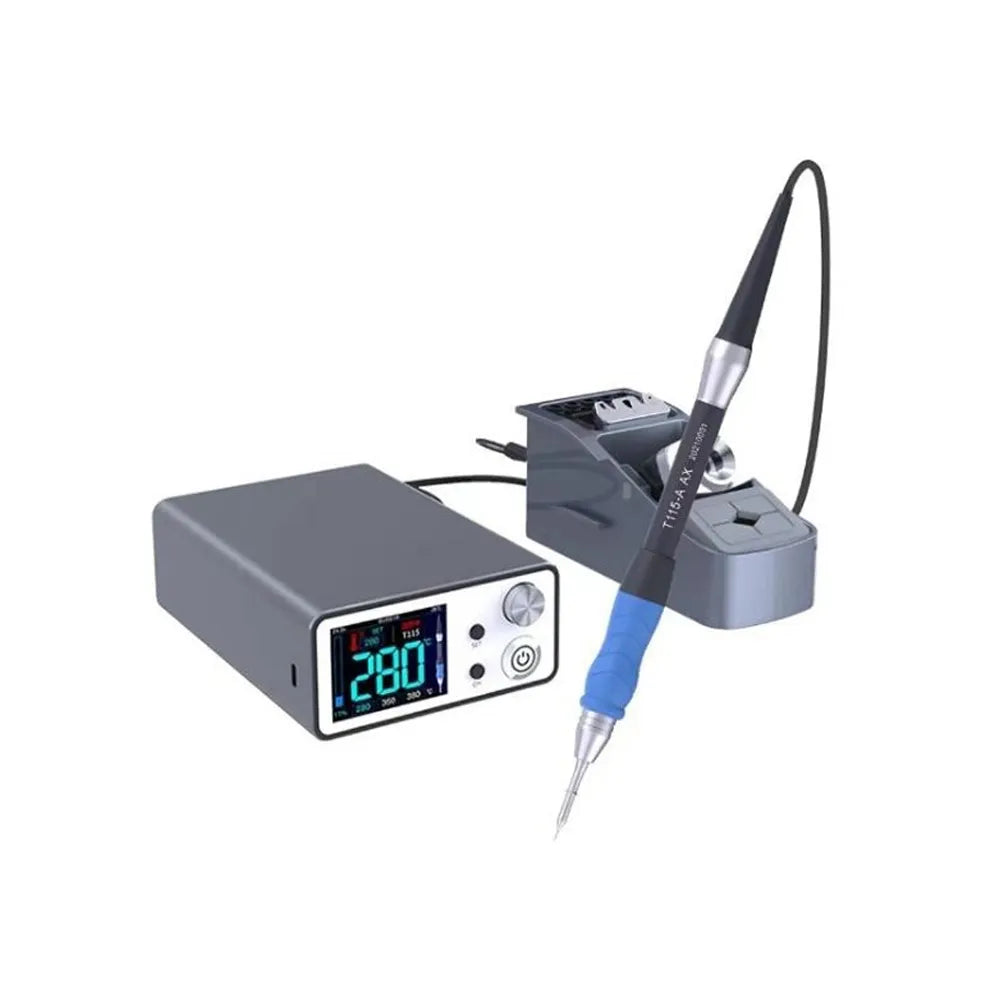

AiXun T3A is the world's first 200w full intelligent soldering station. It's compatible with T12/T245 two handles, and can be applicated to various scenes. With the smart temperature control system, it can quickly heat to 380℃ within 3 seconds with the temperature accuracy deviation less than 1%. It is most suitable for mobile maintenance and precise welding of high-end electronice products. The 2.4 inch LCD digital color display provides you better visual enjoyment, which is benefit for you to improve working efficiency. The smart operator habit memory can help prolong the service life of welding station and soldering tips. It is a must have soldering station especially for cellphone repair shop.

10 advantages of T3B soldering station:

1. Connect to the AiXun platform to update automatically, and the software of the soldering station can be upgraded infinitely.

2. 210/115 soldering tip nano-precision welding, extremely fast heating for 2 seconds to melt tin.

3. Intelligent identification of soldering target and environment, intelligent power compensation, automatic protection.

4. 2.4-inch color screen display, adjustable temperature from 100-450 degrees, with real-time stand by function.

5. Support T210, T115 two handles, automatically identify the model and working status.

6. Personal habit temperature self-memory, three-channel temperature switch quickly, adjust with knob.

7. The main station has a built-in ambient temperature sensor to avoid high temperature operation.

8. Automatic recording of working time, automatic reminder of fatigue work.

9. Super anti-static isolation design to meet industrial ESD standards.

10. Connect to the AiXun platform to customize the personalized boot interface.

The advantages of AiXunT3B soldering station

AiXun T3B 200W Smart Micro Soldering Station supports T210 and T115 handles and is specially designed for nano-precision component soldering. Using the most advanced intelligent temperature control system, it only takes 2 seconds to heat the temperature to 380 ℃, and the temperature accuracy deviation is less than 1%. The 2.4-inch large LCD color display screen helps the operator to easily understand the current working status and temperature. The temperature is adjustable from 100-450℃, and the strong anti-static design conforms to the industrial ESD standard. Remote software upgrade is a unique feature of all AiXun products. It is a rework soldering station for electronic parts repair.

OBDSTAR RH850/V850 Adapter

OBDSTAR RH850/V850 Adapter is For Airbag Reset, IMMO Data/Pincode Read(Dashboard, BCM, ELV, etc. )
Need work with X300 G3, P50 together
All data read is unencrypted and can be used on the third party devices.

Functions:

Volkswagen MQB48-5A key programming (components removing free) (MQB49-5C under development)
Ford/Lincoln 2021-key programming (including all keys lost)
Nissan/Renault key programming (including all keys lost)
FCA key programming (upcoming upgrade)
Supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor

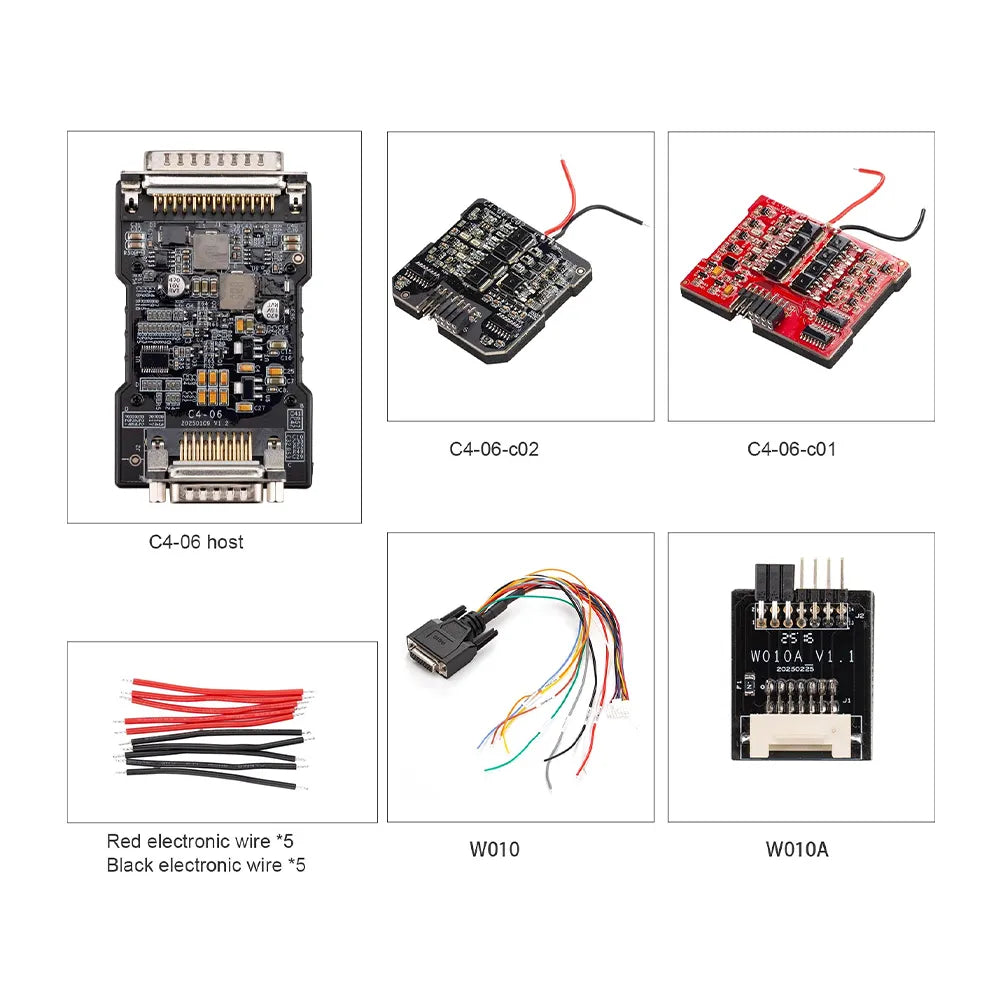

Package includes:

1pc x C4-06 Adapter
1pc x W010 Cable
1pc x W010A Adapter
1pc x C4-06-C01 Adapter
1pc x C4-06-C02 Adapter
5sets x dedicated decryption jumper
