P003 Kit - Adapter with ECU Bench Cables for Key Master and X300 (OBDSTAR)

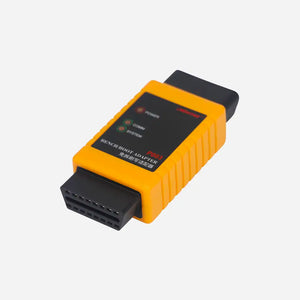

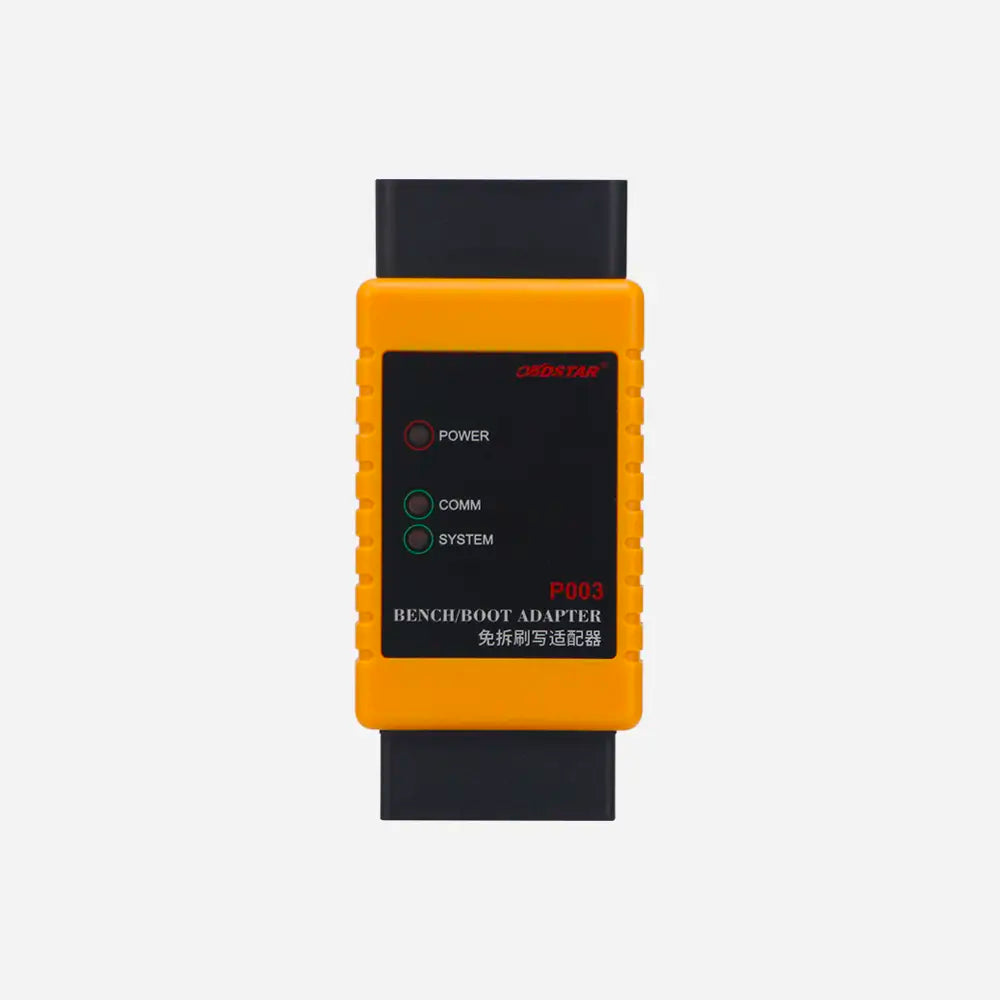

BDSTAR P003 Adapter with ECU Bench Cables

For reading BOSCH ECU data, CS, PIN code etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.

Works together with OBDSTAR X300 DP/ X300 DP PLUS/ X300 PRO4/ DC706/ D800

OBDSTAR P003 Kit Supported ECU List:

Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5 HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro 6/TC298TP) etc.

Continental PCR2.1(TC1796)

2010-2014 Audi A1 (8X) 1.6L Diesel

2009-2012 Audi A3 (8P) 1.6L Diesel

2009-2013 Seat Altea 1.6L Diesel

2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

2010-2012 Seat Leon II 1.6L Diesel

2014 Seat Toledo (KG) 1.6L Diesel

2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

2010-2013 Skoda Fabia II (5J) 1.6L Diesel

2010-2011 Skoda Roomster (5J) 1.6L Diesel

2013-2014 Skoda Rapid (NH) 1.6L Diesel

2011-2013 Skoda Superb (3T) 1.6L Diesel

2012/2015 Skoda Yeti (5L) 1.6L Diesel

2010-2015 VW Caddy (2K) 1.6L Diesel

2009-2013 VW Golf VI 1.6L Diesel

2010-2013 VW Golf Plus 1.6L Diesel

2011-2014 VW New Beetle (9C) 1.6L Diesel

2011 VW Passat (B7) 1.6L Diesel

2009-2014 VW Polo V 1.6L Diesel

2010-2015 VW Touran (1T) 1.6L Diesel

2. Bosch MED17.4.4(TC1793)

Citroen C3 Mk2

Citroen C4 Gran Picasso

Citroen C4 MK2

Citroen C5 (RD/TD)

Citroen C6

DS DS3

DS DS5

DS DS6

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 3008 (T84)

Peugeot 308 (T9)

Peugeot 4008

Peugeot 408

Peugeot 508

3. Bosch EDC17C60(TC1793)

Citroen Berlingo

Citroen C-Elysee

Citroen C3 Aircross

Citroen C3 MK2

Citroen C3 Picasso

Citroen C4 Cactus

Citroen C4 MK2

Citroen C4 Picasso

Citroen Jumpy

Citroen Spacetourer

DS DS3

DS DS4

DS DS5

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 308 (T9)

Peugeot 5008 (T87-P87)

Peugeot 508

Peugeot Expert

Peugeot Ranch/Partner

Peugeot Traveller

Opel/Saturn/Vauxhall Combo E

Opel/Saturn/Vauxhall Crossland X

Opel/Saturn/Vauxhall Grandland X

ToyotaProace

4. Bosch MD1CS018

Mahindra BS-6

5. Bosch MED17XX/EDC17XX

EDC17U01(TC1766)

EDC17C46(TC1767)

EDC17C54(TC1797)

EDC17C64(TC1797)

EDC17CP44(TC1797)

EDC17CP44 MS(TC1797)

MED17.5(TC1766)

MED17.5.1(TC1766)

MED17.5.20(TC1766)

MED17.5.5(TC1766)

MED17.5.5 HW2(TC1766)

MED17.5.2(TC1767)

MED17.5.5(TC1767)

MED17.5.5 HW2(TC1767)

MED17.5.21(TC1782)

MED17.5.25(TC1782)

MED17.1.1(TC1797)

MED17.1.1 MS(TC1797)

MED17.1.6(TC1797)

VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bosch ME17XX

ME17.5.6(TC1767)

ME17.5.20(TC1767)

ME17.1.1(TC1797)

ME17.1.6(TC1797)

VW/Audi/Skoda/Seat, Bentley...

OBDSTAR P003 Kit Functions

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
2. Bosch MED17.4.4 reading eeprom , PinCodeP003 KIT
3. Bosch EDC17C60 reading eeprom , PinCodeP003 KIT
4. Bosch MD1CS018 reading eeprom, PinCodeP003 KIT
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash

Bench Mode:
Step 1: Connect 1, 2, 3 together as pic below;

Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 12V power with diagnostic device;
Step4: read data

Boot Mode:
Step 1: Connect 1, 2, 3 together as pic below;
Step2: connect the ECU pin connector to the ECU according to the wiring diagram;
Step3: connect 7 with 4 or 5 and connect it to ECU;
Step4: connect 12V power with diagnostic device;
Step5: read data on diagnostic device.

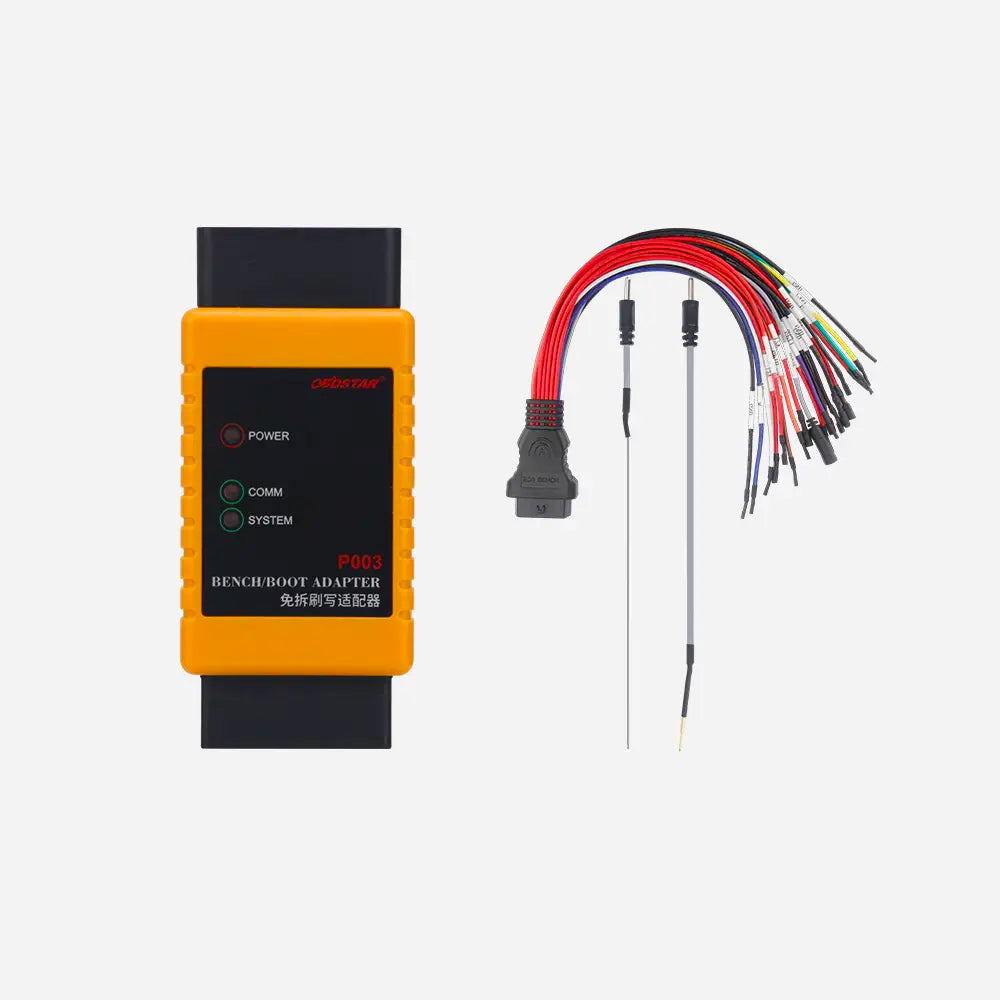

Package List (work with X300 DP/ X300 DP PLUS/ X300 PRO4):

1pc x  P003 adapter

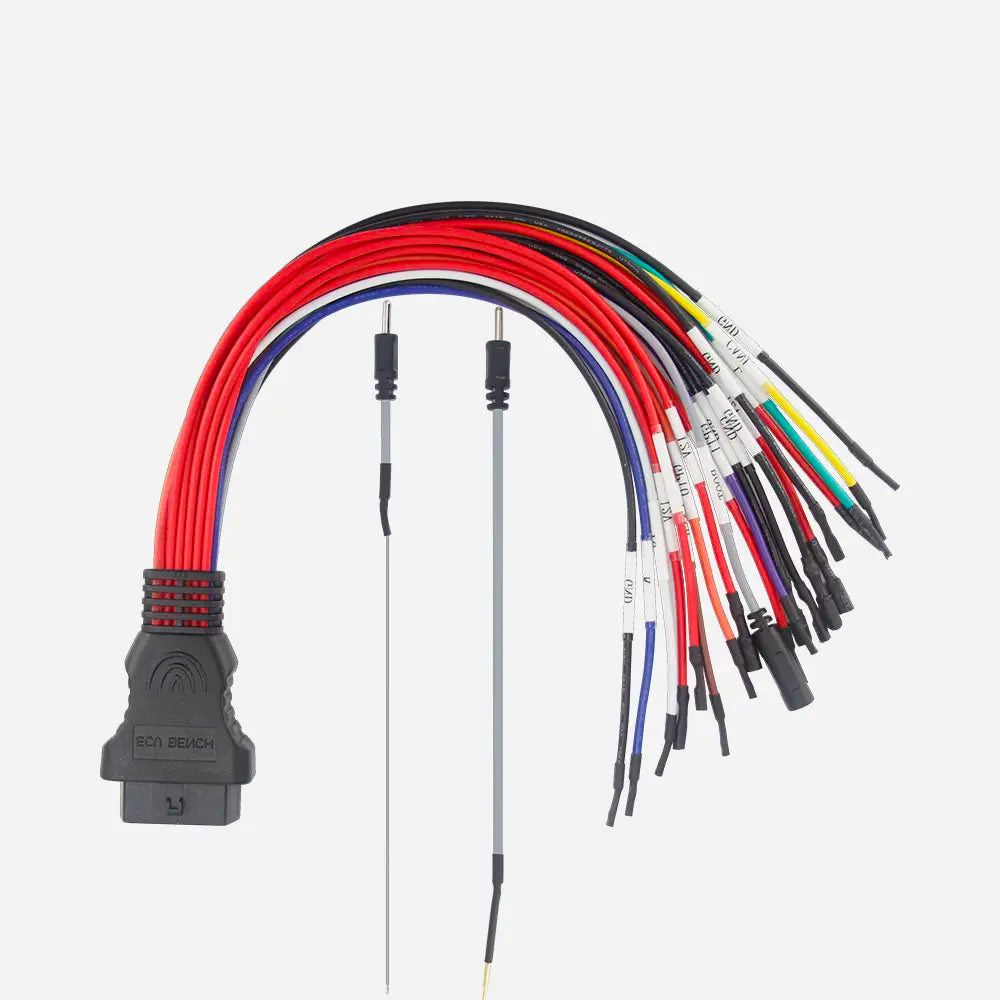

1 set x  ECU BENCH cables
