The BMW ISN reading cable is required to read the BMW ISN number on the bench without the car BMW ISN code is required when programming BMW CAS3+ all keys lost the smart key

Connect the BMW DME ISN reading cable with the BMW ECU and the BMW key programming device, and start BMW ISN reading procedures from BMW DME, BMW ISN reading is done without drilling a hole in DME for the BMW DME boot bin.

How to read BMW MSV80 ISN using the VVDI2 BMW key programmer

• Connect BMW DME with the VVDI2 using the BMW ISN reading cable
• Go to the key learn section in the VVDI2, then select ECU ISN reading
• Select the BMW DME Type you need to read the ISN
• Press Read BMW ECU information
• The VVDI 2 will show you the BMW ECU info
• Press Read BMW DME ISN
• BMW ISN code reading required approximately 8 minutes
• After BMW ISN reading success the VVDI2 will show the DME ISN code
• Save the BMW ISN code to process with the BMW smart key programming

BMW ISN cable-supported DME (ECU)

• BMW MSV80 ISN reading
• BMW MSV801 ISN reading
• BMW MSD80 ISN reading
• BMW MSD81 ISN reading
• BMW MSD802 ISN reading
• BMW MSD812 ISN reading
• BMW MSD851 ISN reading

BMW DME ISN reading cable is compatible with

• Xhorse VVDI 2 programmer
• Xhorse VVDI BMW programmer
• BMW AutoHex III programmer
• CGDI BMW key programmer
• and other BMW DME ISN reading devices

BMW CAS ISN reading supported system:

• BMW CAS3 ISN reading from DME
• BMW CAS3+ ISN reading from DME
• BMW CAS3++ ISN reading from DME
• BMW CAS3+ ISTAP ISN reading from DME

BMW ISN reading cable-supported vehicles:

• BMW E series DME ISN reading 2006-2014
• BMW E90 DME ISN reading 2006-2014
• BMW E92 DME ISN reading 2006-2014
• BMW E60 DME ISN reading 2006-2014
• BMW E87 DME ISN reading 2006-2014
• BMW E89 DME ISN reading 2006-2014

Works with XHORSE VVDI2 or CGDI BMW, read out BMW ISN on bench
Connect the Cable with ECU and device. Don't need drill hole for boot pin.

Highlights:

1. By working together with Godiag GT100, CGDI BMW & CG Pro, Godiag CAS4 / CAS4+ test platform can program new key when all keys lost, can add new key and replace CAS4 / CAS4+ ECU module.
2. Before installing back the CAS4 /CAS4+ module to the car, you are allowed to connect this test platform to the CAS module to test whether it can communicate or there is any malfunction.
3. Used to read out & backup the data after preprocessing, used to replace CAS4 / CAS4+ immobilizer module (for example: replace 2-port CAS4 with 3-port immobilize system with comfort access).
4. Before installing the CAS4 / CAS4+ module back to the car, it can be used to test whether the programmed key synchronizes with cas4 cas4+.
5. Godiag CAS4 CAS4+ test platform can help expand business for the Engineers who are skilled to program CAS4 /CAS4+ key. When a car owner lost the key, he / she can remove the CAS4 module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and CAS4 / CAS4+.
6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between cas4 cas4+and the key.
7. This test platform adopts the dedicated OEM cas4 cas4+ fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of CAS4 CAS4+ module.

GODIAG for BMW CAS4 /CAS4+ Programming Test Platform Display:

• DB25 female connector(used to connect the male port of GODIAG GT100 / GODIAG OBD2).
• Ignition simulated start switch.
• Immobilizer dashboard simulated indicator.
• Key sensing area.
• Screw bolt.
• Godiag OEM dedicated CAS4 CAS4+ power adapter or CAN Communication adapter.
• Godiag OEM dedicated CAS4 CAS4+ start control adapter.

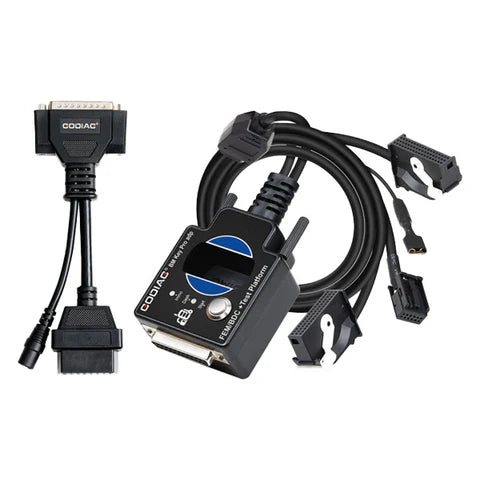

GODIAG BMW FEM/BDC Test Platform

GODIAG BMW FEM/BDC Test Platform Highlights:

1. Provide locksmiths with the easy and convenient connection for FEM/BDC immobilizer system.
2. Perform the synchronization test for the programmed FEM / BDC and the key
3. Provide a test environment for the engineers who professionally recycle FEM/BDC.
4. Help automobile maintenance engineers check whether the FEM/BDC and the key are synchronized correctly.
5. Provide professional engineers with connecting FEM BDC modules and instrument.

Autel Nissan 16+32 Secure Gateway Adaptor for IM608 Pro and IM508

GODIAG For BMW BDC3/BCP

GODIAG for BMW BDC3/BCP Programming Test Platform streamlines immobilizer system management, key synchronization, and module diagnostics with unmatched reliability. All these powerful functions make it the ultimate all-in-one solution for professional engineers. GODIAG for BMW BDC3/BCP Programming Test Platform is your gateway to faster, safer, and more efficient diagnostics. Whether you're working on key synchronization, module programming, or instrument maintenance, this platform has got you covered.

 Test Platform Functions:

1. Used to detect whether the key and module are synchronized.
2. After the key and module are synchronized, the corresponding immo indicator light will light up and there will be a sound prompt.
3. The module off-vehicle diagnostic programming and coding are convenient for engineers to operate and can avoid the risk of other modules of the car being damaged.
4. The key sensor identification light is convenient for detecting the key and module identification.
5. The instrument lights up for instrument detection and maintenance.
6. Key remote control function and module synchronization test.
7. It supports ENET communication and can perform diagnostics, programming and coding on the BDC3 module.
8. It supports CAN BUS module communication and can perform diagnostics and programming on the BDC3 module.
9. Use Autel IM608 device and Autel BDC3 key with Autel BDC3 key addition authorization to add keys to the BDC3 module.
10. Connect to BMW dedicated diagnostic equipment icom, GT109 for ENET communication.
11. Connect to Autel, Launch tablets that supports BMW diagnostics for diagnostics, programming, and other functions.
12. Key intelligent recognition test, check whether the intelligent synchronization function of the BDC3 module is normal.

  Product Functions:

Product Functions:

Support VW IMMO IV NEC24C64 and NEC24C32 AKL.

Without removing IC, soldering PCB and making server data

Read IMMO data by BENCH

GODIAG Full Protocol OBD2 Jumper Functions:

1. Supports DC power supply
2. Support safety protection banana head super programming dedicated connection port power supply.
3. Independent GND4, GND5 [meet the needs of special ECU programming].
4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].

Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.

6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.
8. Equipped with CAN protocol communication resistance.

What is the analog ignition switch?

After the ING ignition switch is pressed, the line marked with ING12V will have 12v, which is the analog ignition switch. Because when some devices read some ECUs, the device will prompt to turn on or off the ignition switch.
