Cable GODIAG Full Protocol OBD2 Jumper Cable for ECU IMMO.
$55.00
Title
Cable GODIAG Full Protocol OBD2 Jumper Cable for ECU IMMO.
Categories :
Cables

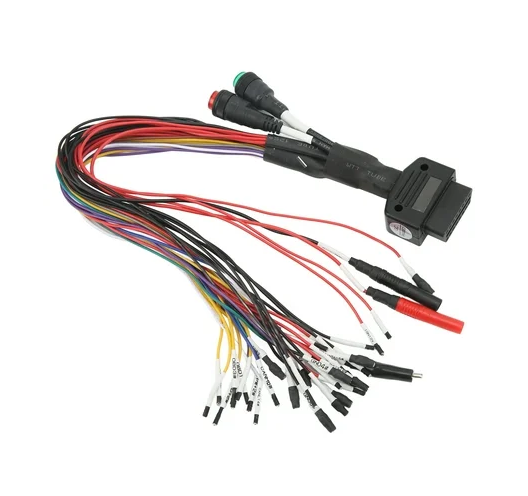

GODIAG Full Protocol OBD2 Jumper Cable is used to connect ECU, Immobilizer, ABS, Airbag, Instrument cluster via OBD or bench easily
The jumper is compatible with lots of OBD2 devices, ECU programmers, key programmers, airbag reset tools and mileage programmers.
can work with Key Tool Plus, Autel IM608 II, Launch Tablet Diagnostic,CGDI, OBDSTAR, KESS V2.
GODIAG Full Protocol OBD2 Jumper Used to Connect ECU for ECU Programing Via MMPS, FGTECH, KESSV2, BYSHUT, DISPROG
GODIAG Full Protocol OBD2 Jumper Adapter is a versatile tool designed to bridge various automotive control modules, including ECU, Immobilizer, ABS, Airbag, and Instrument cluster, facilitating diagnostics and programming tasks.
GODIAG Full Protocol OBD2 Jumper Adapter is a versatile tool designed to bridge various automotive control modules, including ECU, Immobilizer, ABS, Airbag, and Instrument cluster, facilitating diagnostics and programming tasks.
GODIAG Full protocol OBD2 jumper is used to connect ECU for ECU programming via OBD2 way such as MMPS, FGTECH, KESSV2, BYSHUT, DISPROG etc.
OBD2 Jumper Functions:
1. Supports DC power supply
2. Support safety protection banana head super programming dedicated connection port power supply.
3. Independent GND4, GND5 [meet the needs of special ECU programming].
4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.
5. With GND4 GND5 short-circuit switch [some ECUs need to be switched to short-circuit mode when programming].
Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.
6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
6. With ignition analog switch [equipped with 1 large and 2 small dedicated ignition cables].
7. Support standard obd2 full protocol connection [double K line, double CAN line], 3 large and 2 small power plugs, 4 large GND, 4 small GND.
8. Equipped with CAN protocol communication resistance.
Supported Models:
BMW 20, BENZ38, PSA- , DAIHATSU-4, FIAT-3, GAZ NISSAN-14 SUZUKI-3 AUDI 4, BENZ 1, CHRYSLER 6, DAEWOO 12, FORD6+1, GM12, HONDA3, KIA20, MAZDA17, MITSUBISHI 12,SSANGYONG 20, SUBARU 9, TOYOTA 17, TOYOTA 22, BENZ 8, BENZ OD1 16.
BMW 20, BENZ38, PSA- , DAIHATSU-4, FIAT-3, GAZ NISSAN-14 SUZUKI-3 AUDI 4, BENZ 1, CHRYSLER 6, DAEWOO 12, FORD6+1, GM12, HONDA3, KIA20, MAZDA17, MITSUBISHI 12,SSANGYONG 20, SUBARU 9, TOYOTA 17, TOYOTA 22, BENZ 8, BENZ OD1 16.
