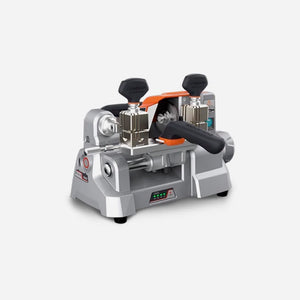

Xhorse XC-009 Condor Cutting Machine
Xhorse Condor XC-009
- Small volume, light weight, easy to carry
- With adaptable guide equipment, guarantee high cut precision
- Super Long Endurance Ability, built-in six 63W.H(2500mA.h) battery cut 60-100 keys continuously
Condor XC-009 Clamp cutting surface selection:
Clamps A, B, C, D on all sides, different types of keys according to the above image to select the appropriate clamping surface or reference appendix.
Battery:
In one single charge, XC-009 can cut up to 60-100 keys.
Features:
Advantage:
Small volume, lightweight, easy to carry.
High Precision:
With adapters guide equipment, guarantee high cut precision.
Wide Applicability:
Equipped with 4-side clamp, flexible exchange among 4-side. Different sides for different features keys, cut kinds of special keys, wide applicability.
Safe & Low Noise:
Emergency switch is able to turn off the power in emergency and start the machine while it’s safe.
Low noise DC brushless motor.
Super Long Endurance Ability:
Build-in 2500mA battery cuts 60-100 keys continuously.
Solid & Durable:
Aluminum structure, processed by DMG precise machine which is imported from Germany.
Humanized Design:
Battery value remind function, hidden hand wheel, big clamp space, cut the big plastic cover keys that don’t need to tear down, streamline handrail design, comfortable operation experience.
Condor XC-009 Specifications:
| Input Voltage | 90-264V AC |
| Input Frequency | 47-63Hz |
| Consume | 110W |
| Power Parameter | 12-18V DC /3A |
| Battery Capacity | 2600mAh/22.2V |
| Spindle Speed | 900rpm |
| Motor Torque | 1.2Nm |
| Clamp Spacing | 95mm |
| Table Travel | 46mm |
| Working Temperature | 0-50? |
| Humidity | 10-90% |
| Net Weight | 10.8kg |
| Gross Weight | 14.0kg |
| Machine Dimensions | 285mm* 175mm* 200mm |
| Packing Dimensions | 420mm* 310mm* 300mm |
| Part | XC0900EN |
