OBDSTAR ADAPTER KIT C4-07 (MB-VGS4-0-NAG2)

OBDSTAR C4-07 (MB-VGS4-0-NAG2)

C4-07 MB-VGS4-0-NAG2 adapter kit is specifically designed for drilling access to the FBS4 7G-Tronic VGS4-0-NAG2 Transmission Control Module (TCM), supports solder-free virginizing of used TCM via JTAG mode, supports personalization (data transfer) via BENCH or OBD mode, achieving the same effect as ECU clone. This eliminates the requirement for automotive electronics technicians to have advanced soldering skills, making it a powerful tool for professionals in the field.

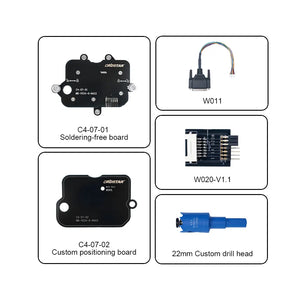

MB-VGS4-0-NAG2 Adapter Kit

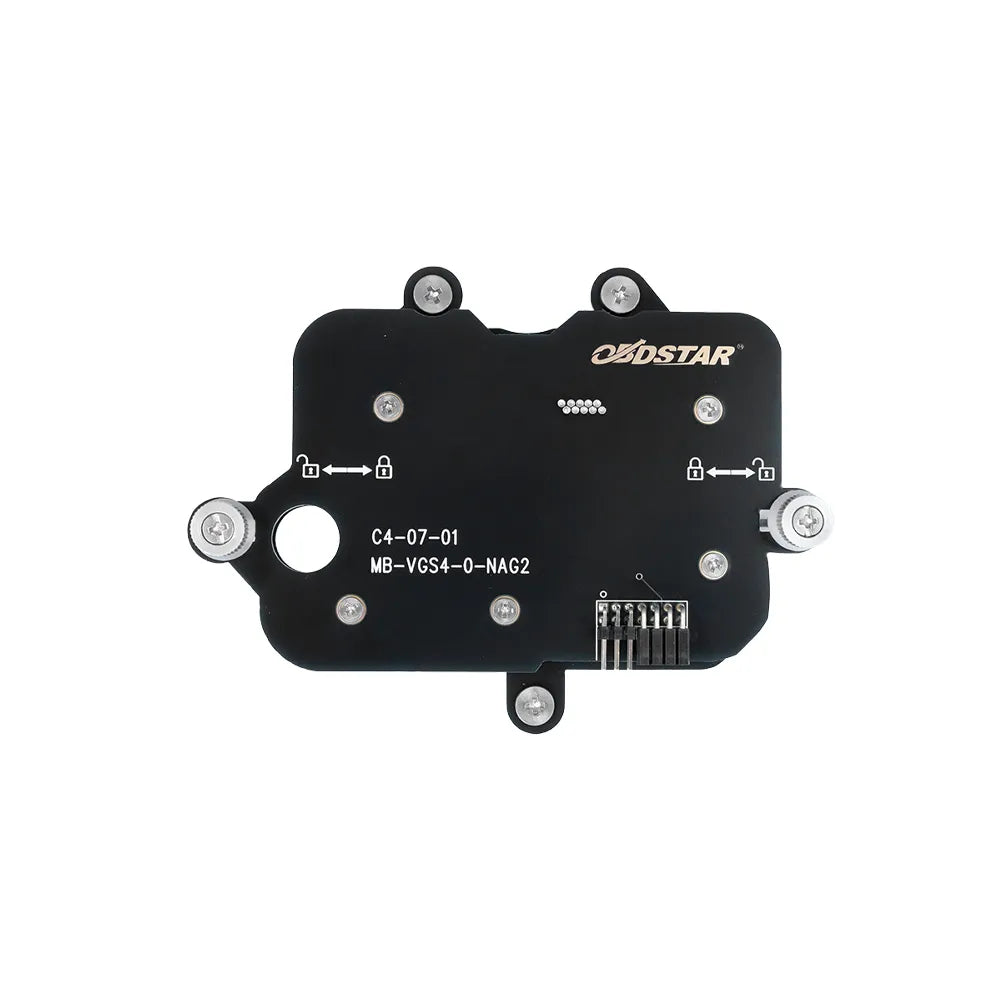

1. C4-07-01 Soldering-free board

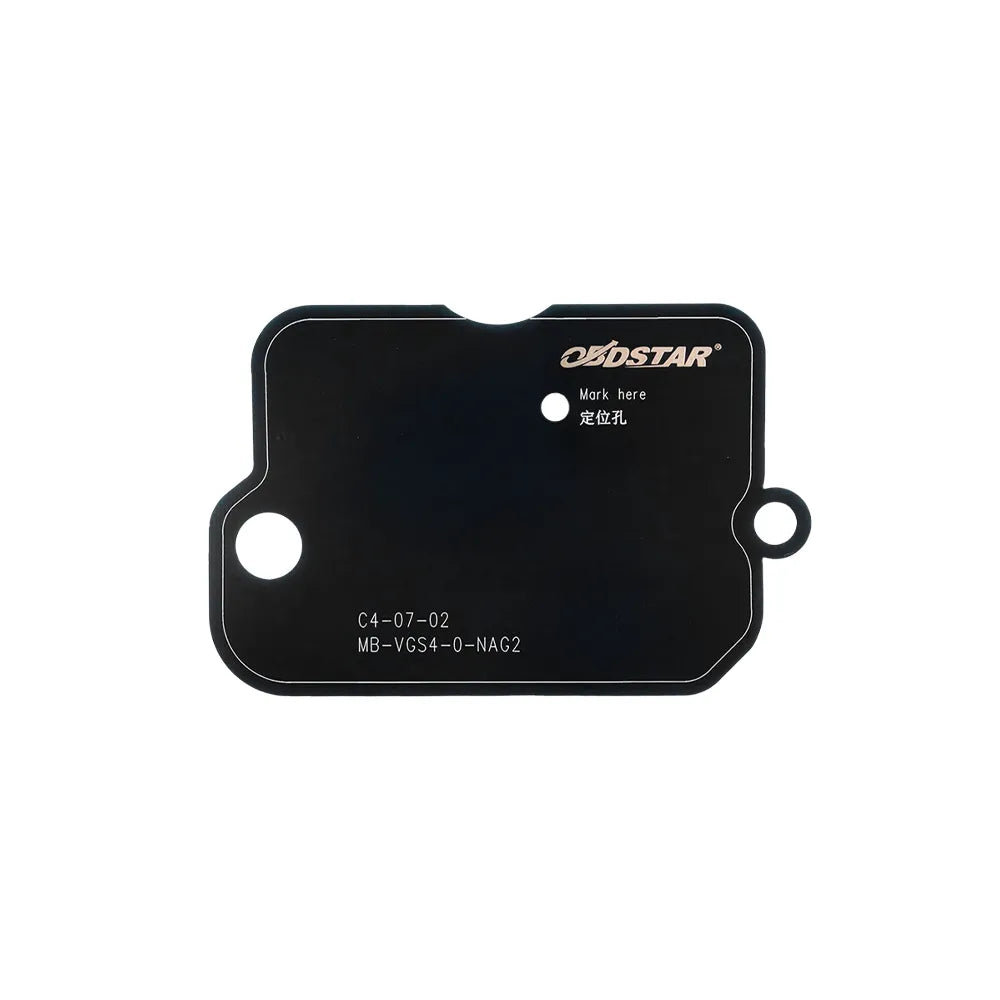

2. C4-07-02 Custom positioning board

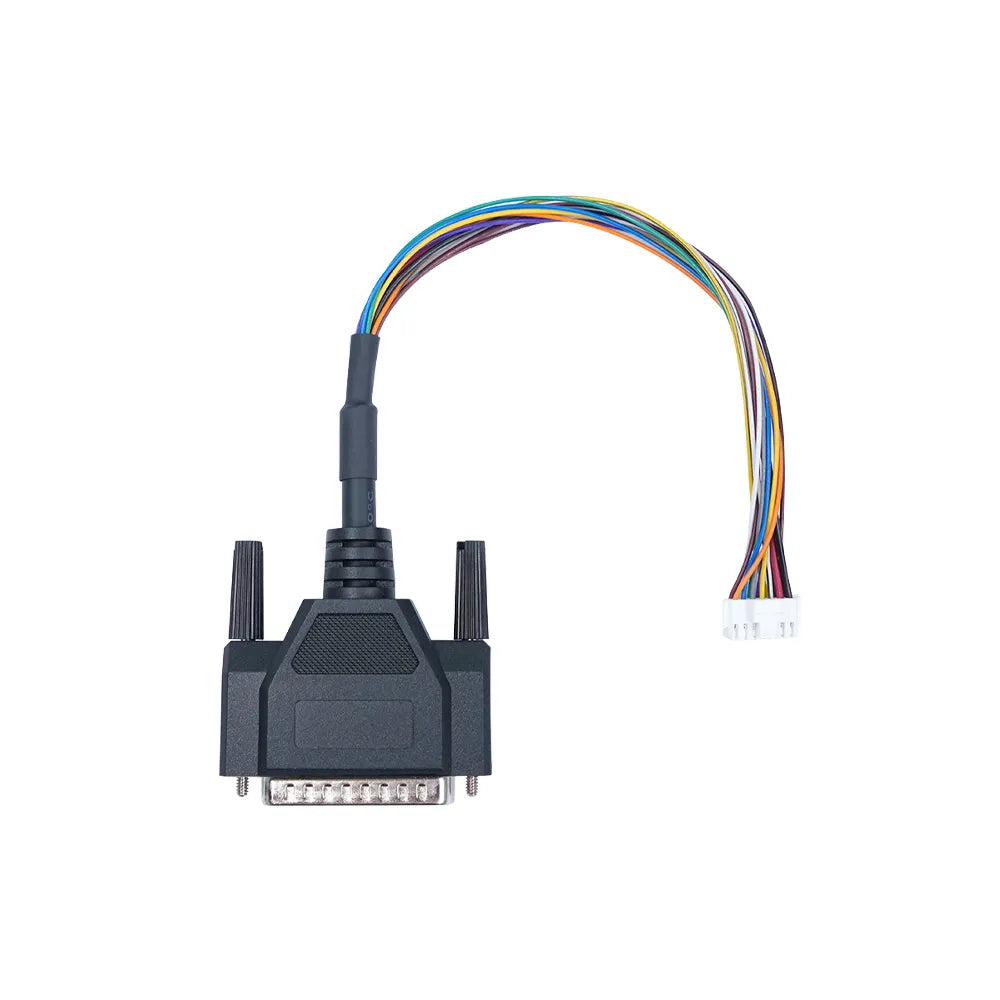

3. W011

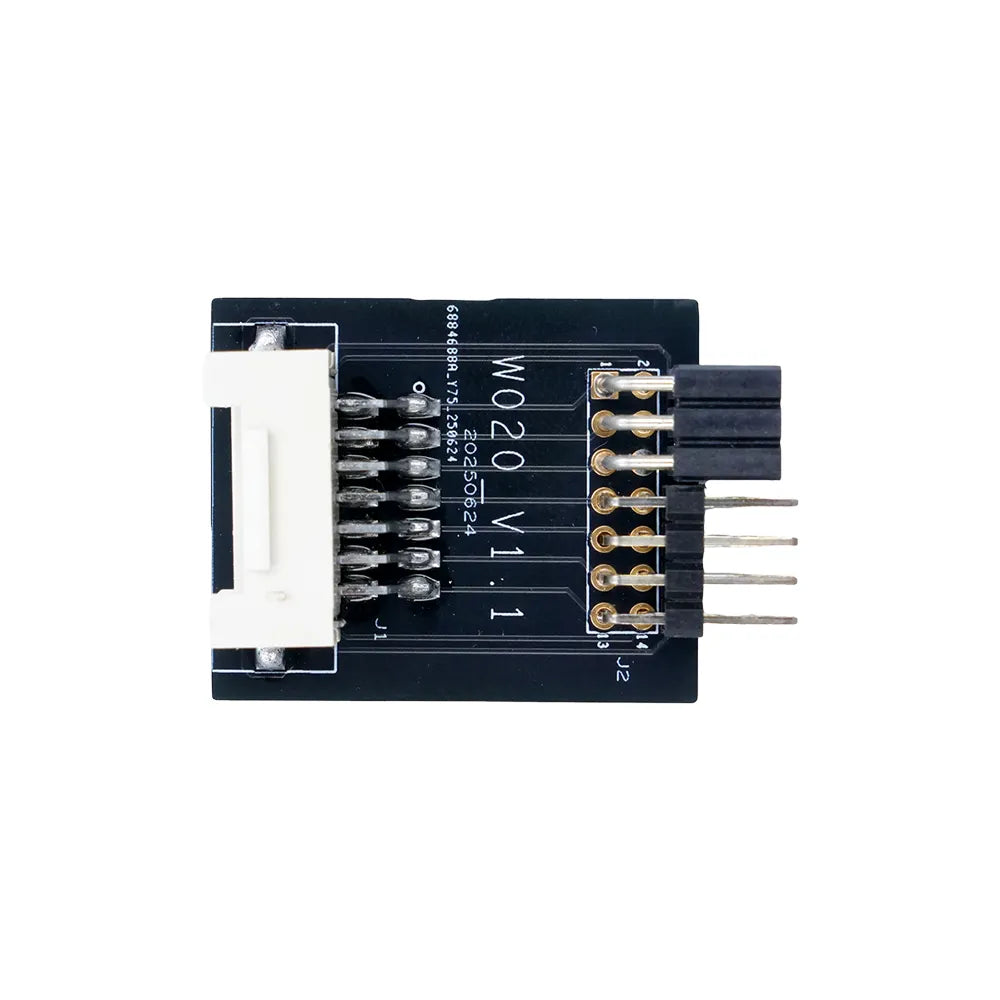

4. W020-V1.1

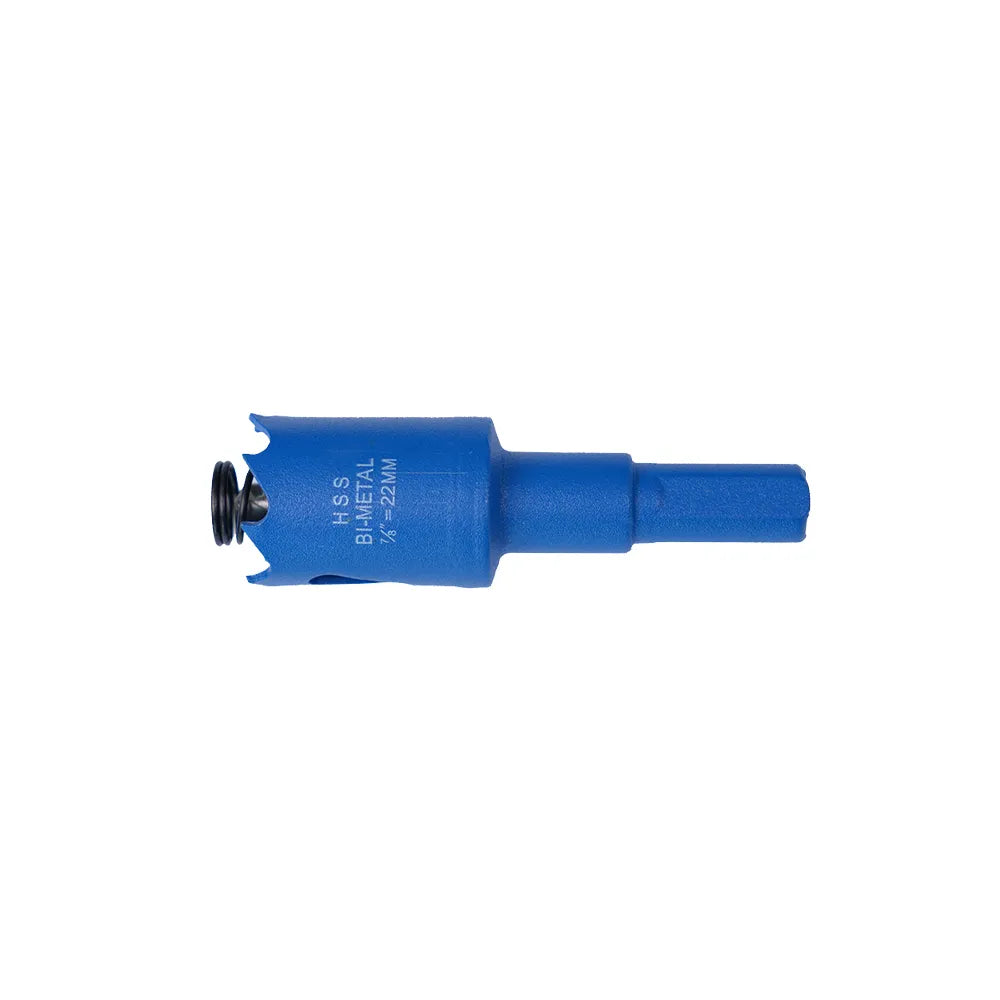

5. 22mm Custom drill head

6. TCM-012 (optional)

7. Converter V2 (optional)

Note:

1. Need to be used with MP001 multifunctional programmer;

2. All of the above accessories are required to perform the function.
If you already have the TCM-012 and Converter V2, you do not need to purchase them again.

Support Functions:

1. Support all vehicles with VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation Mercedes-Benz;

2. Support solder-free virginizing of used TCM via JTAG mode;

3. Support personalization (data transfer) via BENCH or OBD mode, achieving the same effect as TCM clone.

 Advanced Functions:

1. Custom positioning board for precise and secure drilling access to the control unit;

2. Used together with the custom drill head and a handheld drill, the TCM can be easily opened with minimal exterior damage;

3. High-precision custom board enabling safe, solder-free read/write operations—ensuring reliable data access and operational safety.

Support Tools

Use with OBDSTAR KeyMaster G3, DC706, etc.
