FEM BDC Module Testing Platform is a powerful tool for key programming. ecu coding

When making keys, for BMW F series FEM & BDC all need to preprocess the IMMO box. If there is no test platform, it needs to disassemble and install the control unit in the car back and forth. Using our test platform can be completed on the bench, It's both economical and convenient.

With your FEM/BDC keys, FEM BDC Module Testing Platform is easy to detect FEM BDC Control Module in good condition.

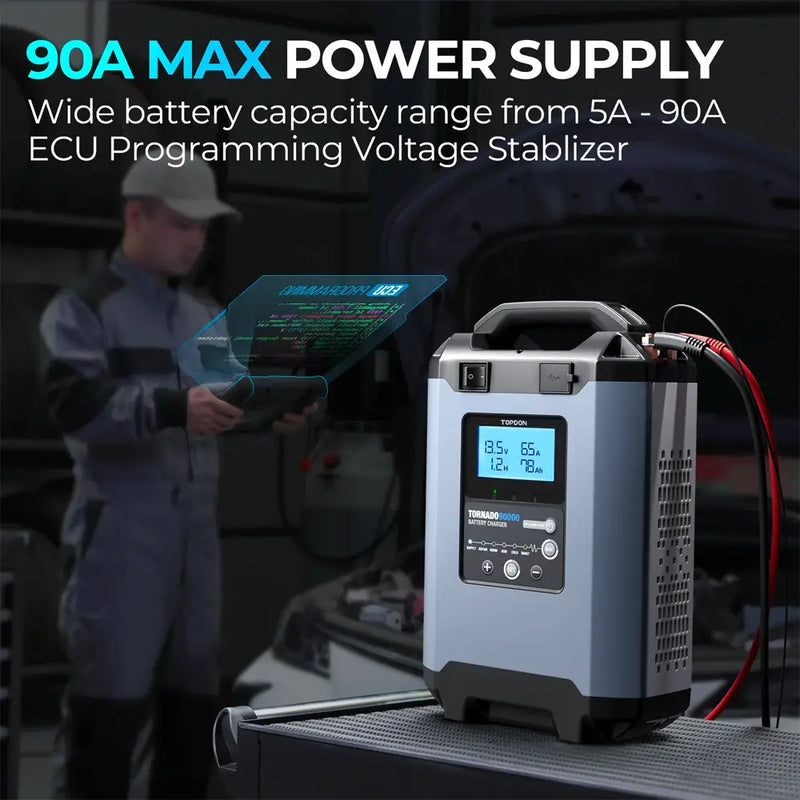

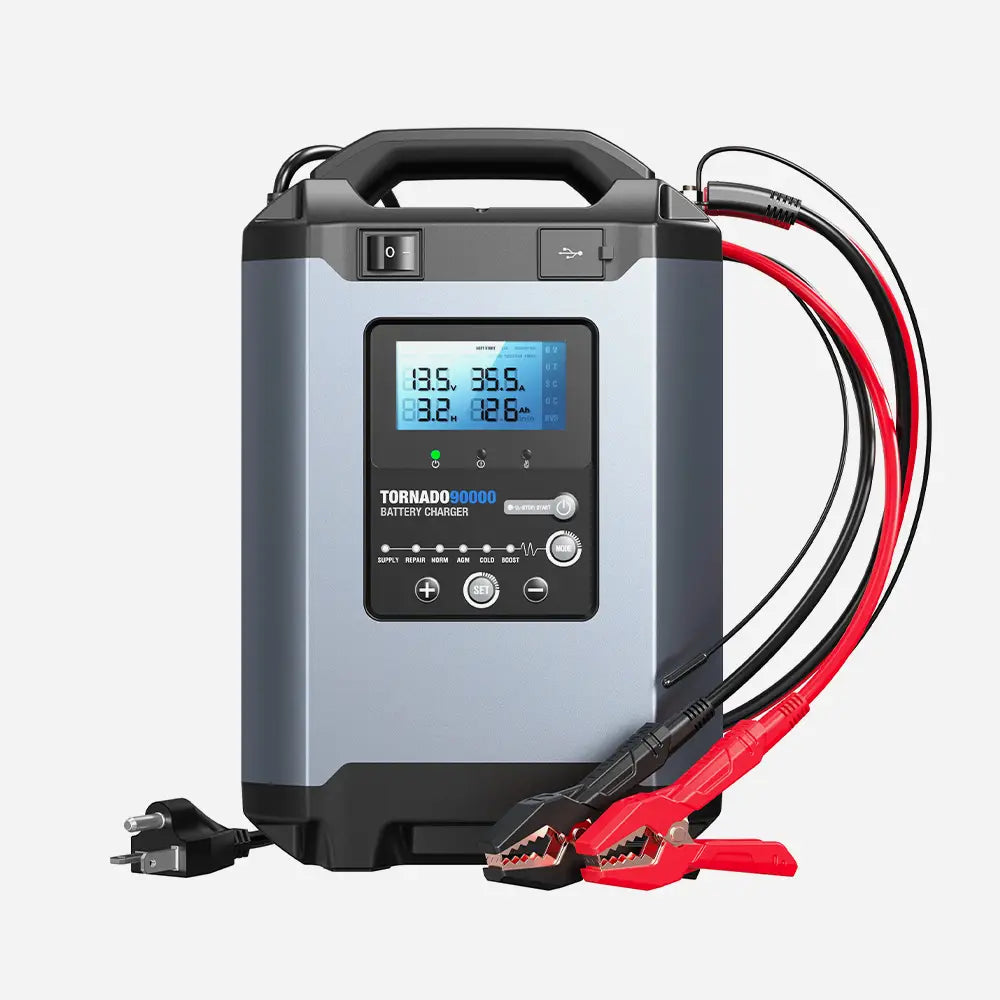

The Tornado 90000 features a current/voltage edit function and supplies users with the needed protection for batteries through its 9-step smart charging method and 6 charging modes. SUPPLY Mode provides a stable DC output and can be used as a programming voltage stabilizer.

FEATURES

6 CHARGING MODES, ADJUSTABLE CURRENT AND VOLTAGE

The Tornado90000 offers 6 programmable charging modes to ensure the right current and voltage output at all times. This device also features an electrical current edit, and voltage edit function. The voltage adjustment ranges from 11-15.8V, and 22-31.6V. Corresponding currents are 5-90A and 5-45A.

LARGE POWER BANK

• The Tornado90000 can act as a stable power supply for various automotive appliances such as tire inflators, car fridges, and more

ECU PROGRAMMING VOLTAGE STABILIZER

• ECU programming voltage stabilizer can match multiple brands and types of automotive systems.



UNMATCHED COMPATIBILITY

• Charge a wide variety of 12V and 24V batteries, such as AGM, WET, GEL, MF，CAL, and EFB batteries.The Tornado90000 is suitable for batteries between 5 and 90 amps.



9-STEP SMART CHARGING

• Its "9-step smart charging" provides strong protection to the battery and the automatic charging and disconnection system eliminates any risk of overcharging.



YOUR BATTERY'S BODYGUARD

• With the Tornado90000 you are protected against reverse polarities, reverse charges, short circuits, overheating, and over-voltages.



DUAL TEMPERATURE MONITORING FOR SAFETY IN EVERY ELEMENT

• The Tornado90000 features a built-in temperature sensor constantly protecting the device being charged. It has a built-in temperature sensor to detect the temperature of the device at all times; External temperature sensing probe to monitor and protect the device being charged.

TECHNICAL SPECIFICATIONS

Input Voltage: 100-130V or 200-240V
Adjustable Voltage: 11-15.8V 22-31.6V
Charging Mode: 12V/24V Mode: SUPPLY/NORM/COLD/BOOST/REP/AGM
Applicable Batteries: 20-2800Ah
AC Cable Length: 1.8m, Input AWG18#
Clamp Length: Positive AWG4#, 2.2m; Negative AWG4#, 2.2m
Protection Rating: IP20 Fan cooled

PACKING LIST

Tornado90000
User Manual
Battery Clamp
Allen Wrench

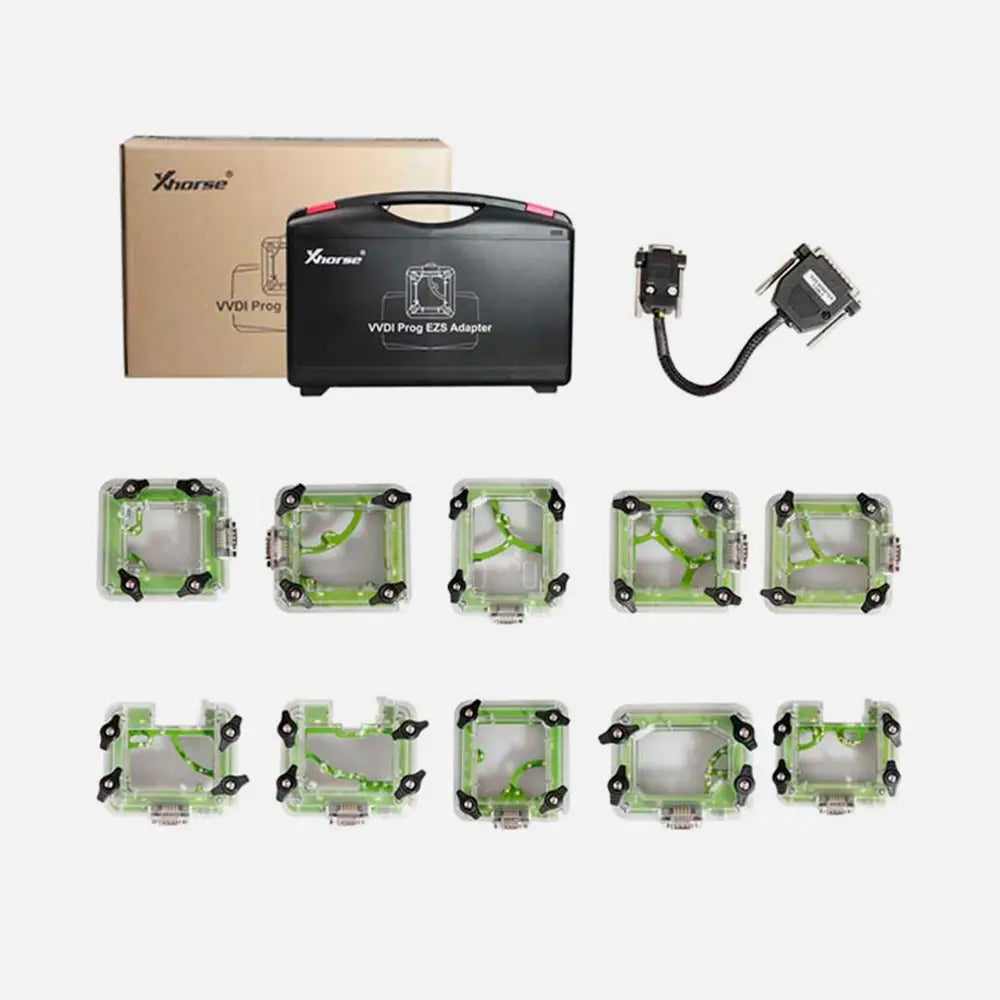

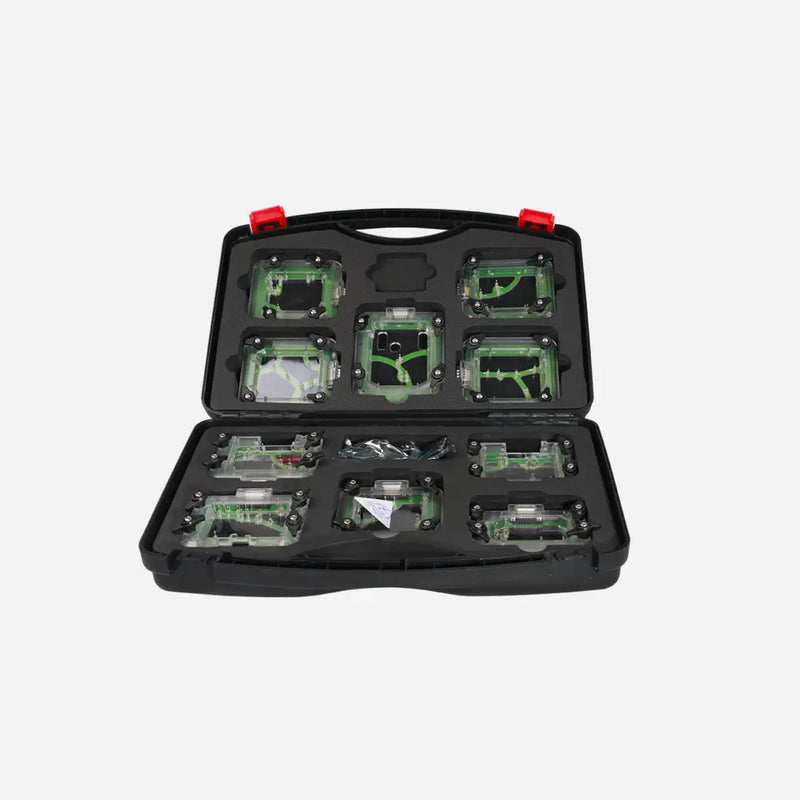

Xhorse VVDI Prog Adapter Set for Benz EIS/EZS - 10 PCS With this collection of 10 adapters from Xhorse, you will now be able to read the Bin File/Dump from the EIS/EZS Modules listed below without soldering a single wire to the Module. This lack of soldering simplifies and speeds up the process while making the reading safer. These adapters are used in conjunction with the VVDI PROG as a complete solution for Bin File/Dump reading on the referenced EIS/EZS Modules. Once you have the Bin File/Dump read out, save the file. You can then present that saved file to the VVDI MB BGA Tool or any other capable tool and program a key to the vehicle. Package includes:

• 1pc x for W164(ST12)
• 1pc x for W169(ST12)
• 1pc x for W203(HC08)
• 1pc x for W209/211(ZWG)
• 1pc x for W209/211(HC12)
• 1pc x for W211(ST12)
• 1pc x for W215/220/230
• 1pc x for W639(HC08)
• 1pc x for SPRINTER(ST12)
• 1pc x for VITO W639(ST12)

10 Pcs - VVDI Prog EZS Adapters for Mercedes

• Don't need to solder
• Read data perfectly
• Can be external power to light when working
• Easy to operate, transparent material – better to observe

• Gets your soldering job done faster
• Easy to handle high performance iron
• Intuitive navigation
• Low total cost of ownership
• Safe handling: ESD safe heat-resistant silicon cable
• Reinforced safety rest for secure iron storage
• Temperature stability and temperature lock protects tips and components and allows reliably high quality, repeatable soldering results
• Standby mode and auto setback conserves energy, protects equipment
• Password-protected to preserve settings
• Automatic set-back saves energy and preserves tip

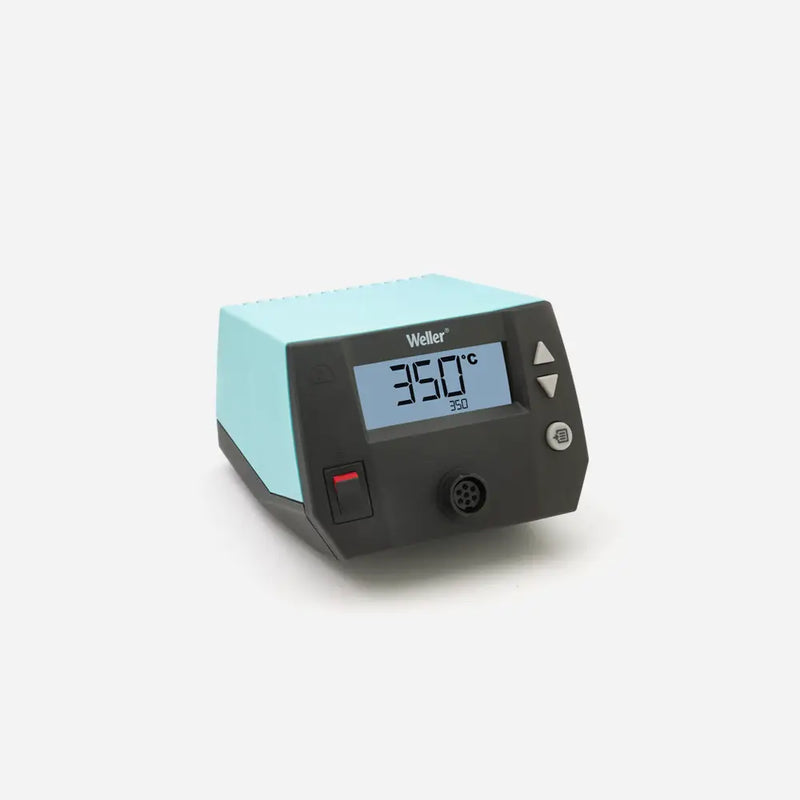

The digital 70 W WE soldering station is 40% more powerful than the WES / WESD station. This allows the iron to heat up faster and to provide a faster recovery time – gets the job done quicker with more efficiency and precision.

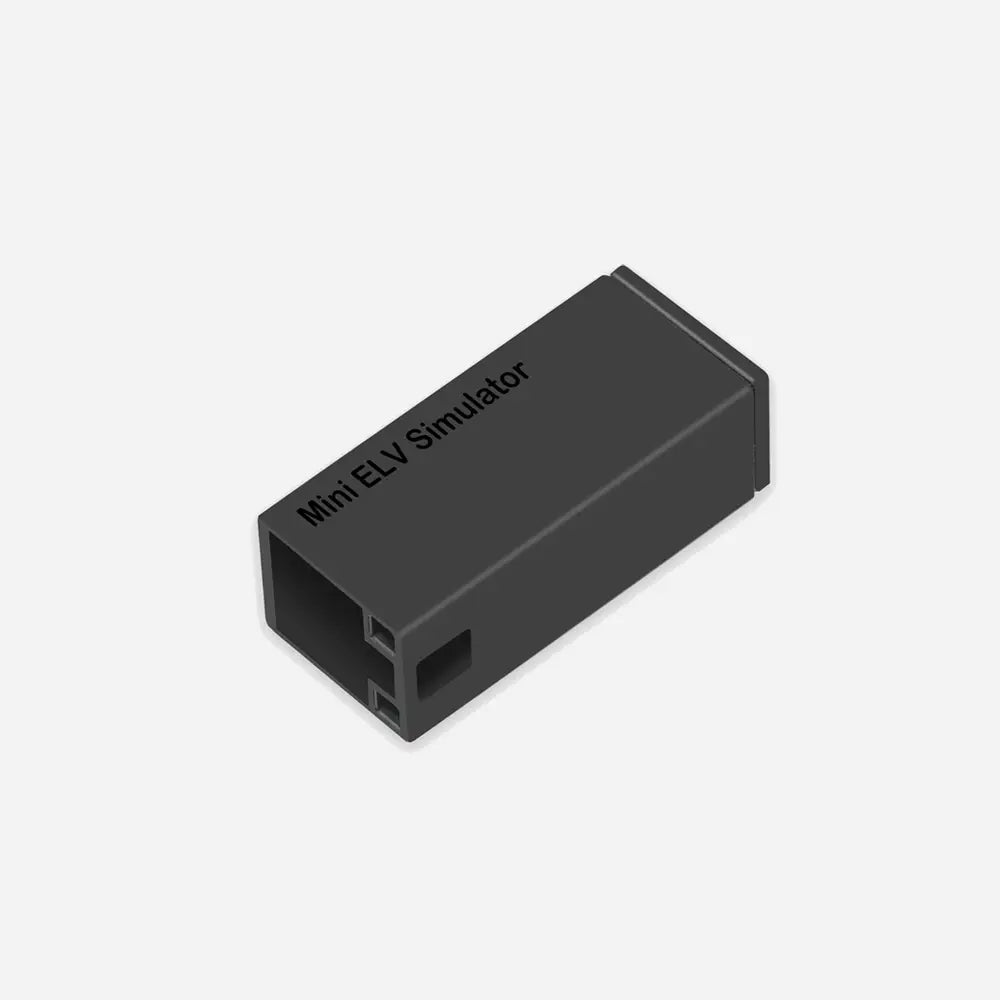

This is a 1 Mini ELV Emulators for Mercedes Benz W204 W207 W212

Can be used as a replacement for the larger Original ELV / ESL emulator at a cheaper price and smaller form factor. A little under 2" it is 5 x smaller than the original which makes it easier to work with

Supports all Benz vehicles equipped with W204 / W207 / W212 directional lock.

Supports direct exchange of the directional lock in the position of the original car.

Emulate the ELV sound of the Original Vehicle

For use with the VVDI MB Key Programmer

Compatible With：

• Condor MINI
• Condor XC-MINI Plus
• Condor XC-MINI Plus II
• Condor Dolphin XP-005
• Condor Dolphin XP-005L

This cutter is used for edge-cut keys with the Condor XP-007 Manual High Security Key Duplicator and Condor XC Mini

The EEPROM Clip Adapter Use appropriate CLIP CABLE to clip to the chip ensure reliable electrical connection. Some circuit boards need use the PROBE

• No Soldering Required
• SOP8 Clip Cable
• DIP8 Clip Cable
• Probe
• EEPROM Clip Adapter

Specs:

Manufacturer: Xhorse
Condition: New
Color: Green

Xhorse VVDI Prog EEPROM Clip adapter overview:

The Xhorse VVDI Prog EEPROM Clip adapter XDPG12 support in-circuit chip read & write for SOP8 / DIP8 Eeprom

Xhorse VVDI Prog EEPROM Clip adapter set supported EEPROM :

• Xhorse VVDI Prog 24Cxx read/write
• Xhorse VVDI Prog 25xxx read/write
• Xhorse VVDI Prog 93Cx6 read/write
• Xhorse VVDI Prog 93Sx6 read/write
• Xhorse VVDI Prog 95xxx read/write
• Xhorse VVDI Prog S29x90 read/write
• Xhorse VVDI Prog ST95P0x read/write
• etc...

Xhorse VVDI Prog EEPROM adapter set XDPG12 contains:

• Xhorse VVDI Prog EEPROM Clip Adapter
• Xhorse VVDI Prog sop8 Clip Cable
• Xhorse VVDI Prog DIP8 Clip Cable
• Xhorse VVDI Prog EEPROM Probe
•

Package includes:

EEPROM Adapter - SOP8 Clip Cable - DIP8 Clip Cable - Probe
In circuit Read/Write EEPROM chip of SOP8/DIP8 package.

Support Type:

24CXX - 25XXX - 93CX6 - 93SX6 - 95XXX - S29X90 - ST95P0X etc ...

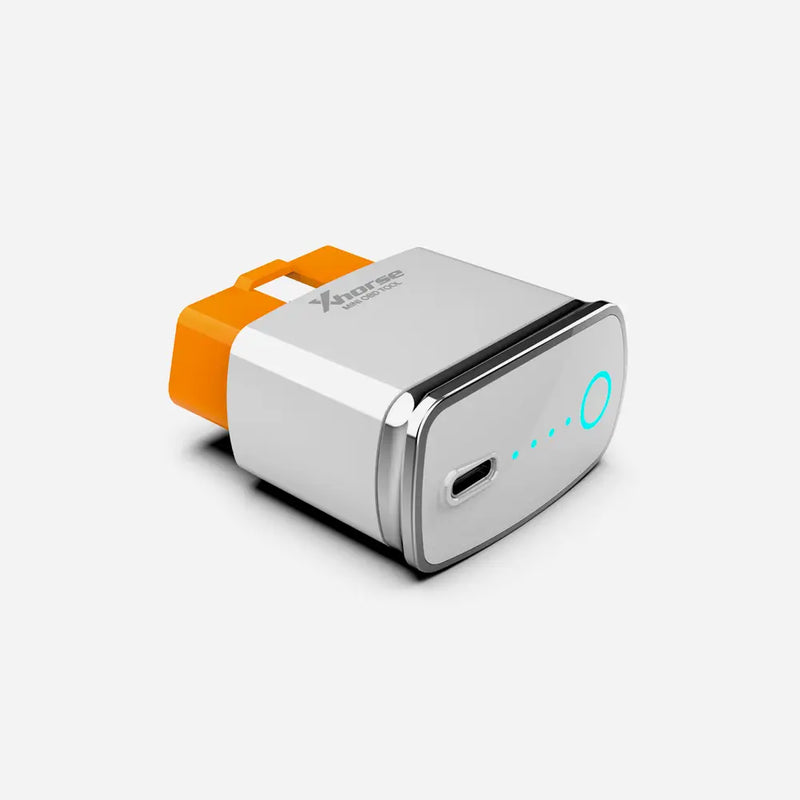

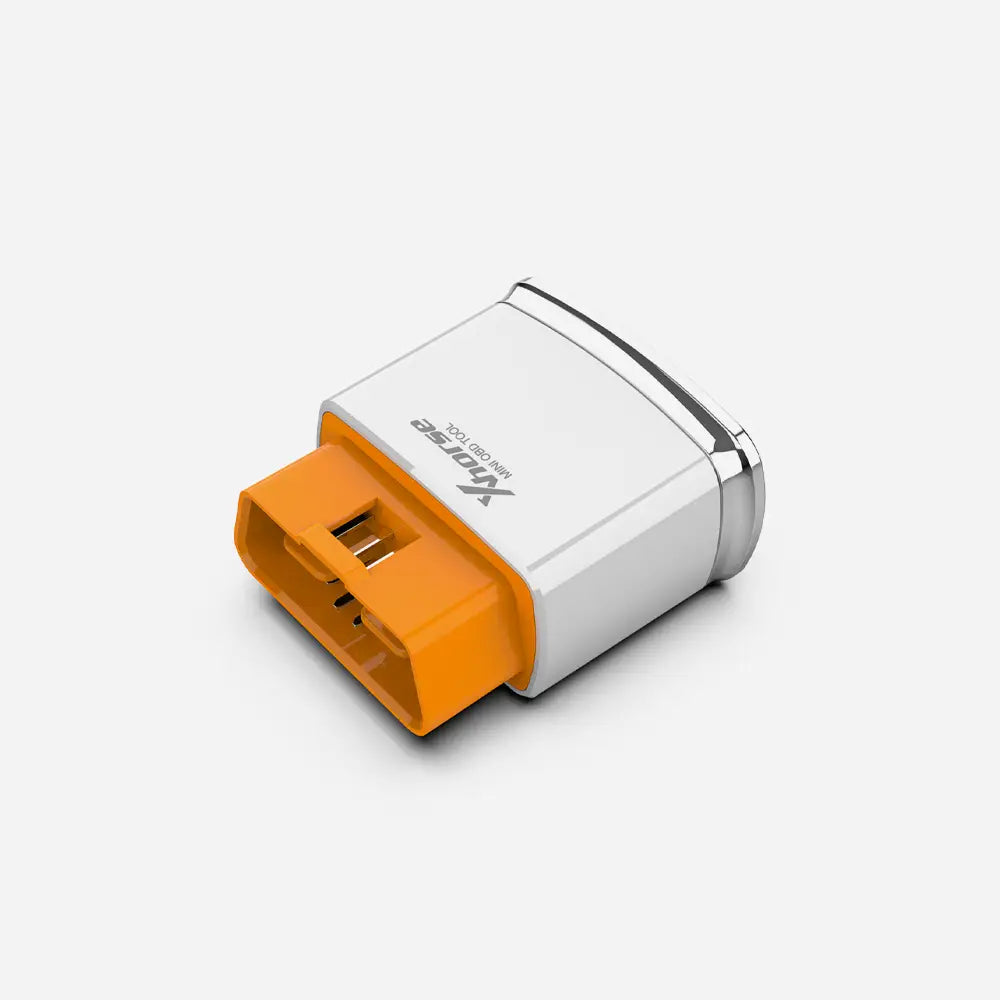

2023 Xhorse MINI OBD TOOL FT-OBD for Toyota Smart Key Support Add Key and All Key Lost

Xhorse MINI OBD tool FT-OBD (For Toyota) version supports over 95% of Toyota smart key adding keys and all keys lost operations.

Xhorse MINI OBD TOOL FT-OBD for Toyota Highlights:

1. 95% Coverage
2. Remote and IMMO Programming
3. Wireless Connection: MINI OBD TOOL can connect with specific software or hardware by WIFI, WLAN or USB interface.
4. Easy to Use: Support work with both Xhorse APP and Key Tool Max.
5. Compact Body

Support List:

Granvia, Land Cruiser, Kluger, Prado, Alphard, Previa HV, Tarago, Vellfire, Prius, Fortuner, Prius C, Hilux Sw4, Prius C2, Corolla EX, Prius PHV, Crown, Prius +, Highlander, Prius V, Highlander HV, Previa, Hilux, Rav4, Hiace, Rav4 HV, Sequoia, Rav4 E+, Camry, Reize, Corolla, Sienna, Corolla Cross, Sienna HV, Avanza, Harrier, Tank, Harrier HV, Tundra, Levin, Vios, Vios FS, GAIA, Wildlander, IA, Venza, iM, Yaris, Ipsum, EZ, iQ, Avalon, Matrix, Allion, Mirai, IZOA ,OPA, Zelas, Raum, YARiS L, Rav4, Prime, Aqua, Rukus, Aristo, Rush, Auris, Sienna, BB, Solara, bZ4X, Tacoma, Comfort, TC, C-HR, XB, Land Cruiser, XD, FJ Cruiser, Yaris GR, Frontlander, 4Runner, FR-S, 86

Xhorse XDRT20 Remote Tester V2 for 315Mhz 433Mhz 868Mhz 902Mhz

Main functions:

1. Frequency detection, supporting 315Mhz, 433Mhz, 868Mhz, 902Mhz and other major frequency bands
2. IMMO signal, doorknob signal detection
3. Infrared signal detection

Intelligent power-saving, longer battery life, magnetic suction function, more convenient to use, exquisite and small, easier to carry
