FC200 ECU Programmer

CG FC200 ECU Programmer Full Version

FC200 Highlights:

• Protect Original Car Parts
  More than 98% of ECUs support BENCH mode and OBD mode, no need to open the cover and punch holes to protect the original car.
• Intelligent Recognition
  The "identification" function can help users better diagnose whether the ECU module is communicating and check whether the wiring is wrong. If the ECU module can communicate without damage and the wiring is correct, the recognition can be successful, and the chip information, hardware information and firmware information can be read out.
• Module Clone
  Supports ECU data reading and writing and module cloning, no synchronization matching, no online programming, data sub-regional burning, automatic verification, and maximum protection of chips and modules.
• ISN Read and Write
  Supports engine computer ISN code acquisition for all BMW series (including Mini), which is convenient for key matching and anti-theft maintenance.
  Check FC200 BMW ISN Read and Write List
• VIN modification
  Solve the problem of double VIN or VIN mismatch of vehicles, which is convenient for vehicle maintenance.
• Data Processing
  Support engine computer data analysis and modification for Audi/Seat/Skoda/Volkswagen models;
  Support the shutdown of Bosch MED/EDC17 series engine computer anti-theft system;
  Support the TPROT off function of Bosch VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series.
• FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess, Dimsport etc.
  Check FC200 Support ECU List
• For Checksum Function, Please Check FC200 Support Checksum List for Reference.
• There are 3 Operating Modes: CAN-BUS, Bench Mode and Boot Mode
• Multi-Language: English, French and Simplified Chinese
  For Spanish, Polish Turkish and Traditional Chinese, will need to pay $130 to get authorized seperately with serial number.
• Full Version with All License Activated.
  Free Update Online for One Year. Annual Fee will be $250/year after the first year.
• With New Adapters Set No Need Disassembly in Package:
  Adapters Including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter.
  (With this adapter set, you won't need the old B48/B58 cable anymore).

FC200 Latest Update Information:

V1.0.7.0  Registered Version NEW (2022.06.28)

• Added Bosch ST10 series engine boot modes: M7.9.7, ME7.9.71, ME7.9.7, ME7.4.5, ME7.9.9, MED7.6.1, MSE3
• Added Hyundai and Kia KEFICO series engine boot modes: CPEGD2.20.1, CPEGD2.20.2, CPEGD2.20.3, CPEGD2.20.4
• Added Delphi engine boot mode: CRD2.x MPC5566
• New Bosch boot mode engines: ME17.9.23, MED17.7.5, ME17.9.7, M17.8.7, MED17.8.2, EDC17CP65, ME17.8.5
• Newly added engines to modify the VIN function: EDC17C63, EDC17CV44, MED17.1.1, MED17.8.2, MEDG17.0
• Modify the VIN function and add the function of forcing a new VIN to be written
• Fix some bugs and optimize software performance

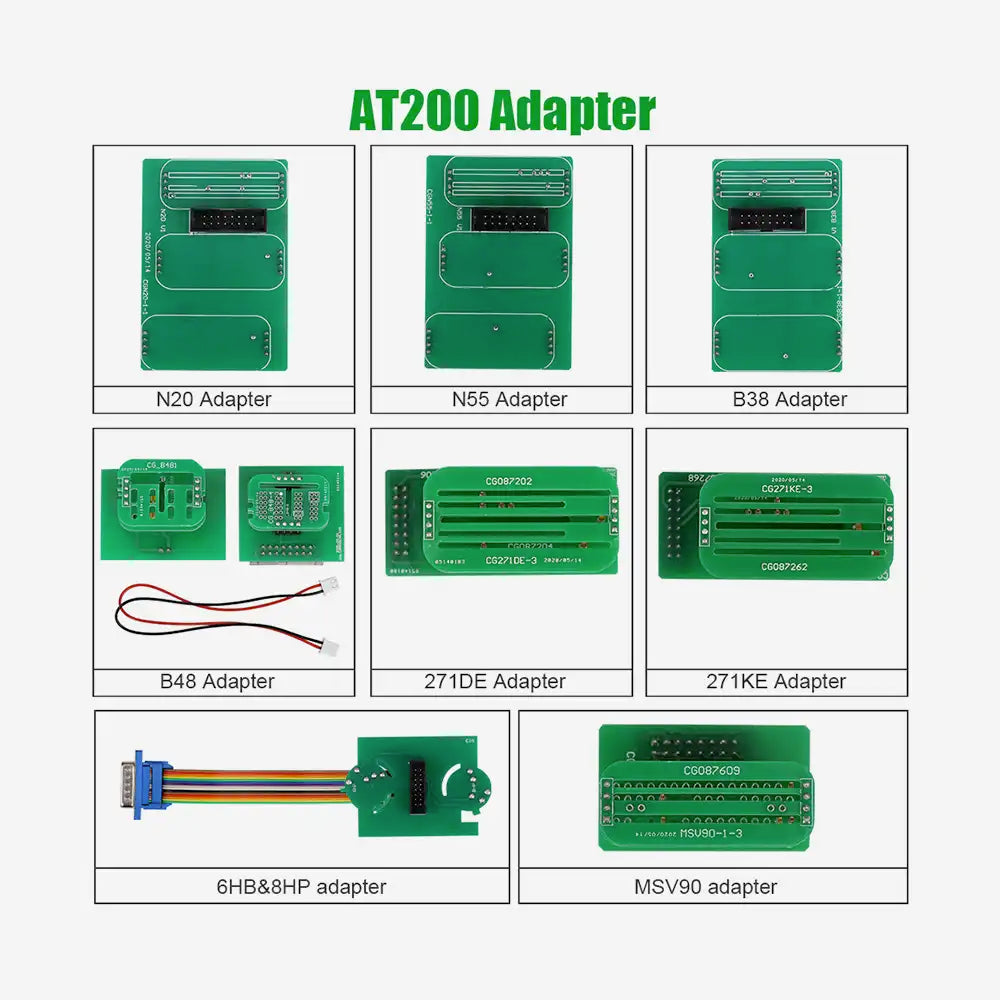

Functions of Each Adapter:

• MSV90 Adapter:
  This adapter supports ISN reading and writing and data backup and recovery of BMW MSV90
• N20 Adapter:
  This adapter supports ISN reading and writing, VIN modification and data reading and writing functions of the N20 and N13 of the F series chassis of BMW
• B48/B58 Adapter:
  This adapter supports ISN reading and data reading and writing functions of BMW models: MG1CS003, MG1CS024 and MG1CS201
• 271KE Adapter & 271DE Adapter:
  These two adapters support the data backup and recovery functions of Mercedes-Benz SIM 271KE and SIM 271DE
• 6HP & 8HP Adapter:
  The adapter is used for the data backup and recovery function of the 6HP and 8HP EGS of BMW models.

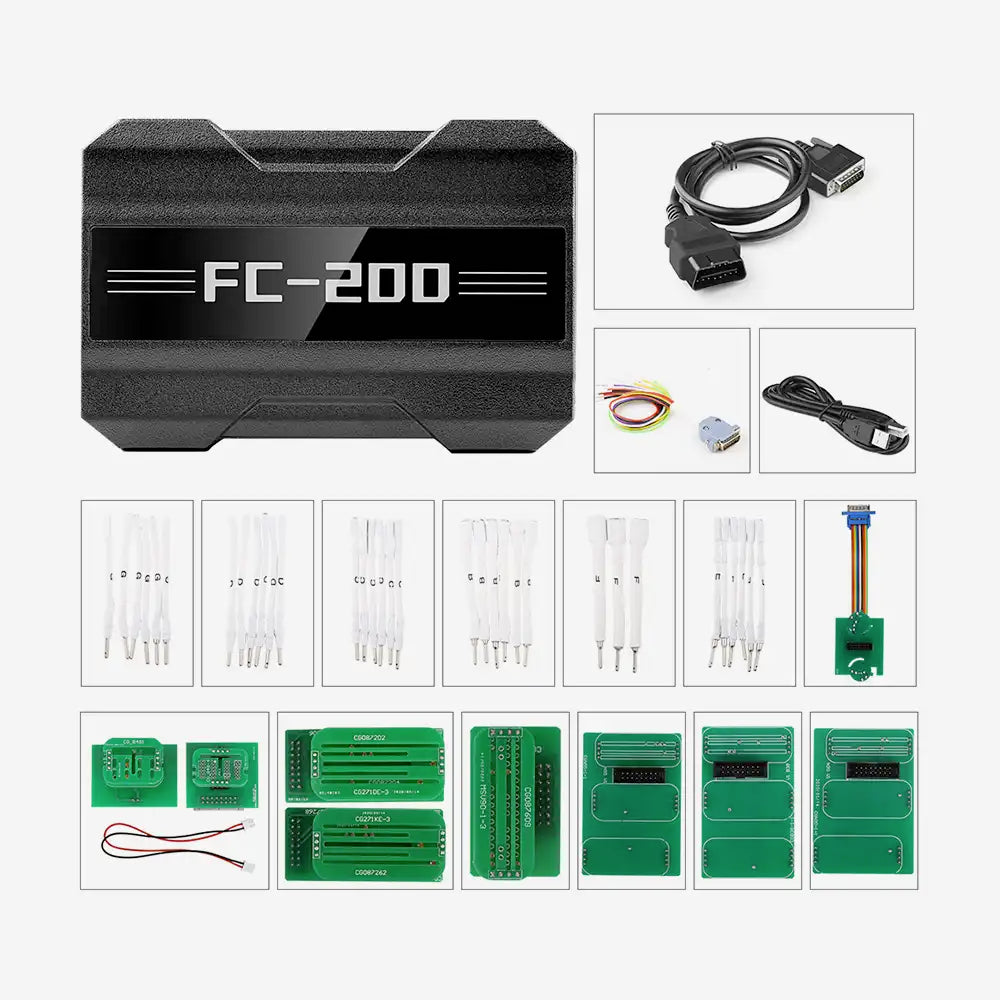

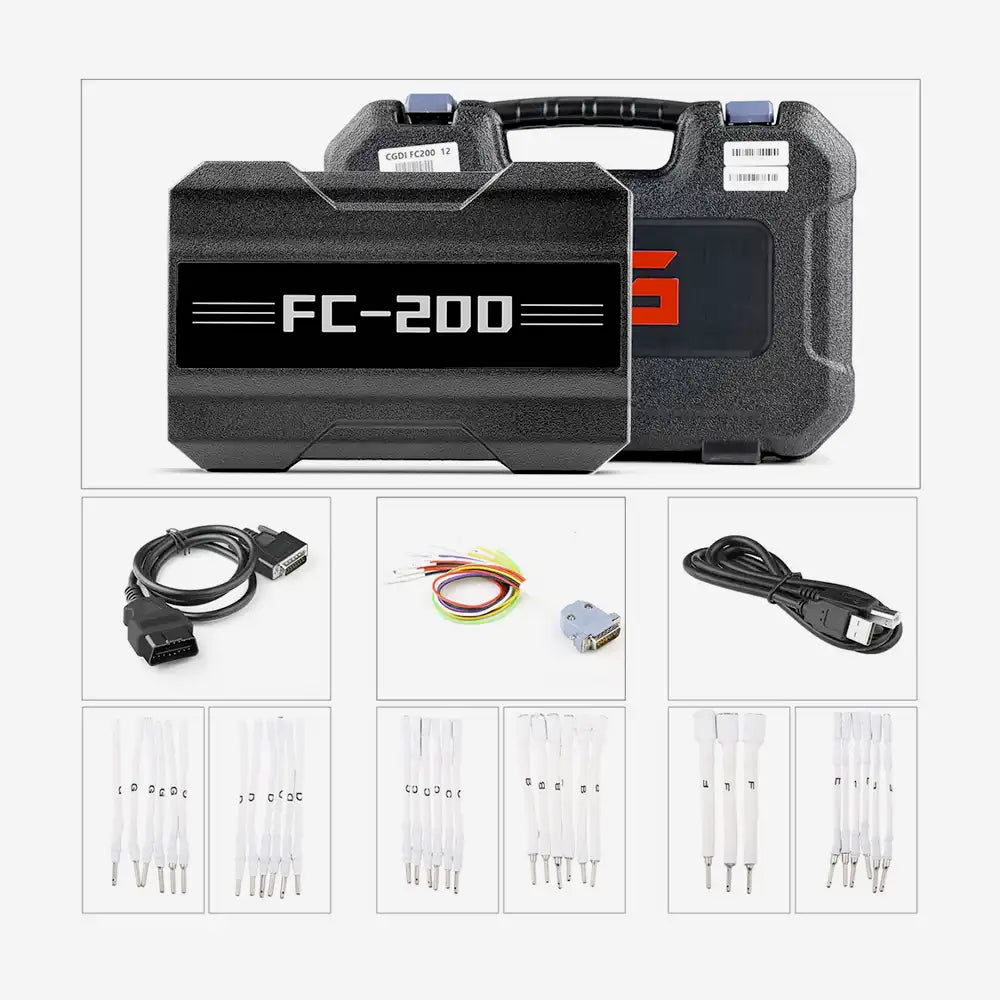

Package List:

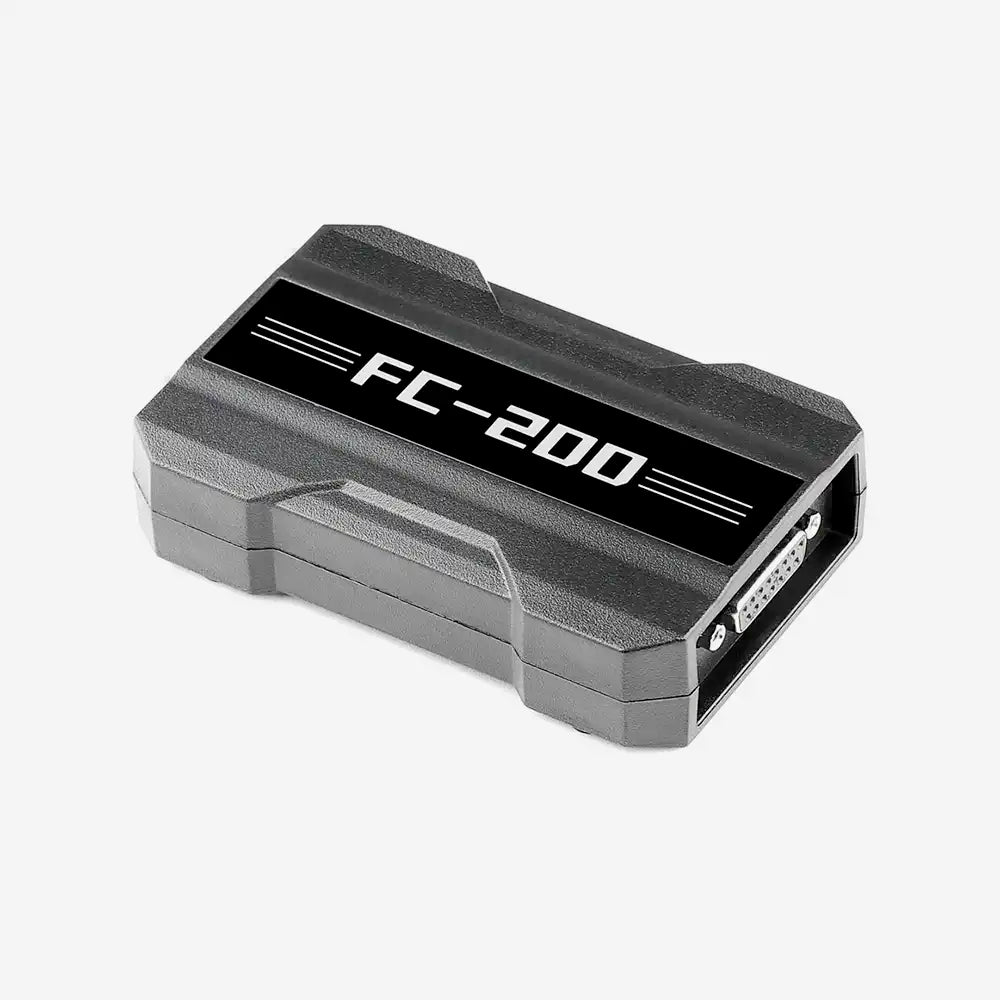

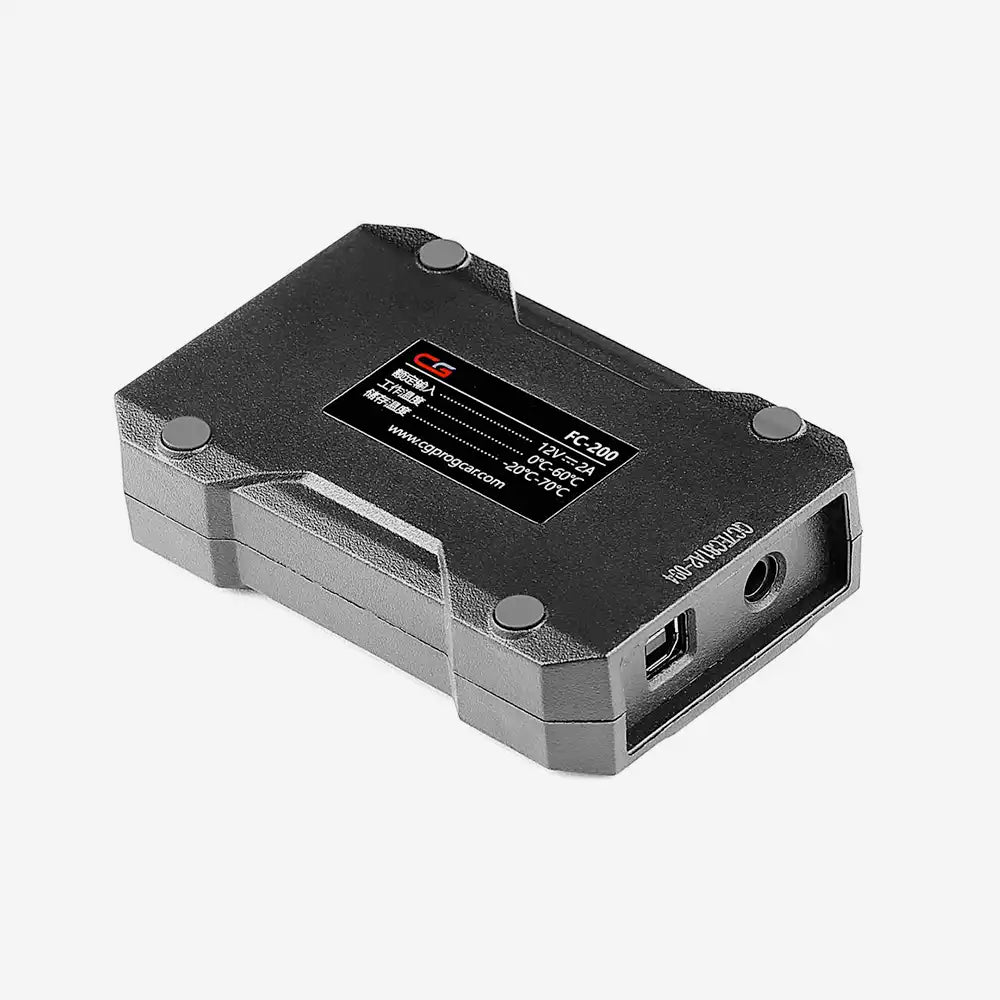

• CG-FC200 Host
• DB15 Adapter
• Multifunctional Wiring Harness
• OBD Adapter
• USB Wiring Harness
• FC200 Adapter Set
  including: 6HP & 8HP, MSV90, N55, N20, B48/B58, B38, 271KE Adaper, 271DE Adapter.
